L-COM LCCA30012FT1 RF Cable Assembly

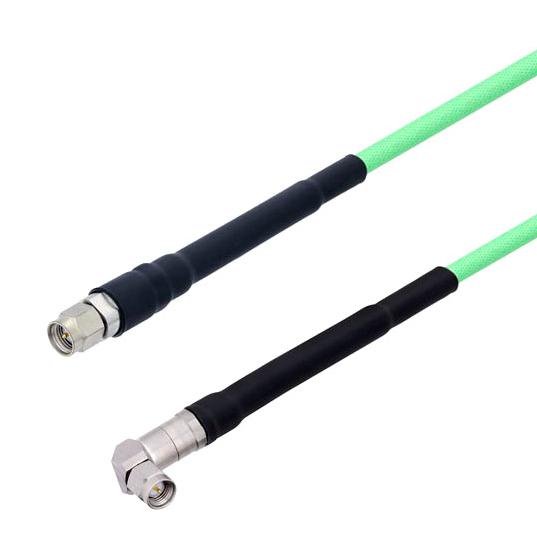

L-com’s LCCA30012-FT1 is a low loss SMA male to SMA male right angle cable assembly with heavy duty heat shrink boot using LL142 coax, 1 FT. It features flexible tape-wrapped PTFE dielectric with 80% VoP for low insertion loss up to 18 GHz, shielding effectiveness greater than 95dB, and durable stainless-steel connectors. The cable is ideal for tight spaces, automated test systems, laboratory, antenna ranges, and long cable runs. Its robust construction ensures reliable performance in demanding environment applications.
L-COM LCCA30012FT1 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 0.33 dB at 18 GHz
- Shielding Effectiveness: > 95dB
- Connector Type: SMA Male to SMA Male Right Angle
- Cable Type: LL142 coax with tape wrapped PTFE dielectric
- Dielectric: Tape wrapped PTFE with 80% VoP
- Inner Conductor: Solid, Copper, Silver plated
- Jacket Material: FEP, Green
- Outer Diameter: 0.195 inches
- Length: 1 ft
- Weight: 0.037 lbs
- Bend Radius: 0.975 inches
- Operating Temperature Range: -55°C to +200°C
- Connectors Material: Passivated Stainless Steel, Gold over Nickel
- Assembly: Triple shielding with silver-plated copper braid and tape
- Heavy Duty Heat Shrink Boot for strain relief
Buy the Cor SMA Cable – Reliable RF Cable Assembly for Industrial Applications
Purchase the Cor SMA cable assembly today for high-frequency, low-loss RF connections perfect for automated testing, laboratory setups, and long cable runs. Its robust construction, shielding effectiveness over 95dB, and flexible tape-wrapped PTFE dielectric ensure excellent performance up to 18 GHz. The heavy-duty heat shrink boot provides strain relief, making it ideal for tight spaces and demanding environments. Enjoy same-day shipping and custom options to suit your specific application needs, ensuring reliable, high-quality RF interconnects for industrial and technical use.
Buy Cor SMA Cable now and experience unmatched reliability and performance in your RF test and communication systems.
