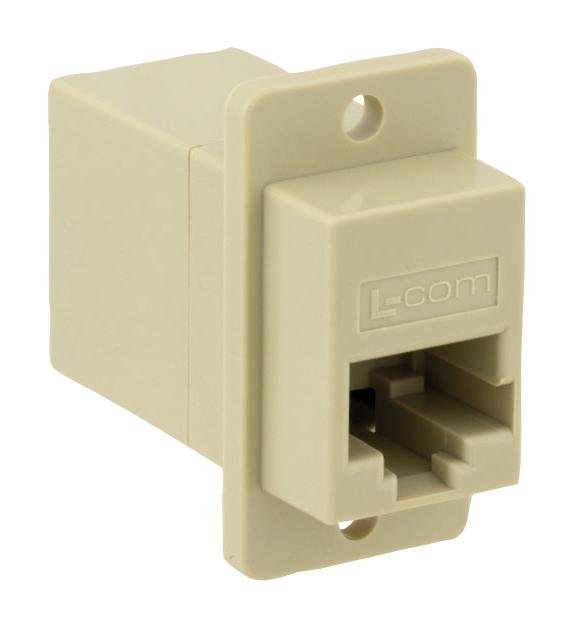

L-COM ECF5048SKIV Networking Jack
This is a keyed RJ45 jack designed for telecom and networking applications, featuring a Category 3 rating and a maximum current rating of 2 amps. Constructed with UL94V-0 ABS housing in ivory and phosphor bronze contacts with gold over nickel plating, it ensures reliable electrical connections. The connector operates within a temperature range of -10°C to +70°C and supports voltage up to 140 VDC. It is suitable for panel mounting, with overall physical dimensions and recommended panel cutouts detailed for precise installation in networking hardware and communication devices.
L-COM ECF5048SKIV Networking Jack Specifications:
- Housing Material: ABS, UL94V-0, Color: Ivory
- Contacts Material: Phosphor Bronze
- Contact Plating: Gold, 30 micro inches over Nickel
- Current Rating: 2 Amps (Max.)
- Voltage Rating: 140 VDC
- Operating Temperature Range: -10°C to +70°C
- Rating Application: Category 3
- Component Packaging: Individually Packaged as per specifications
- Dimensions and Panel Cutout: Refer to technical drawings with tolerances
- Overall Cable Length Tolerance: ±0.1 inch (approximate)
- Certifications: CE, RoHS Directive
Buy the Buy L-COM RJ45 Jack Part Number ECF5048SKIV Online
Purchase the high-quality L-COM networking jack ECF5048SKIV online now for your telecom and communication hardware needs. This Category 3 rated connector features gold-plated contacts, UL94V-0 ABS housing in ivory, and supports up to 140 VDC with 2 amps maximum current. Its reliable construction ensures stable connections in networking installations, while its compact size and recommended panel cutout facilitate easy integration. Ideal for structured wiring and communication equipment, secure your networking solutions today with this durable, compliant RJ45 jack designed for long-term performance and trustworthiness.
Get L-COM RJ45 Jack ECF5048SKIV today—designed for reliable networking connections and durable panel mounting.
Frequently Asked Questions
Where can I buy L-COM ECF5048SKIV?
You can click on the BUY or RFQ button to purchase ECF5048SKIV from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part ECF5048SKIV?
You can download the ECF5048SKIV datasheet or visit the L-COM website for support.
Who is the manufacturer of ECF5048SKIV?
L-COM
