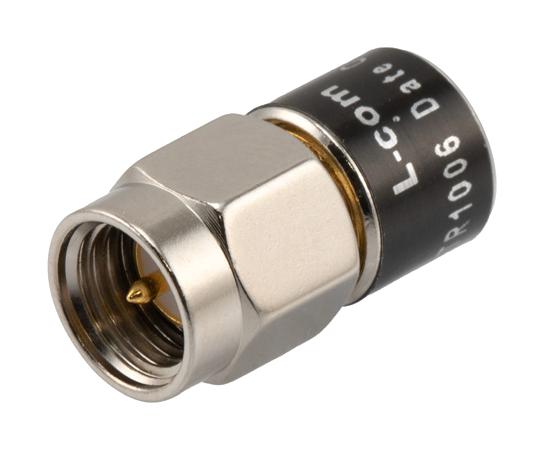

L-COM LCTR1006 RF Dummy Load
The LCTR1006 is a high-performance RF termination operating from DC to 18 GHz, capable of handling up to 1 Watt of continuous power. This SMA male connector dummy load features a 50 Ohm impedance, a maximum VSWR of 1.35:1, and a compact size perfect for RF, microwave, and millimeter wave systems. Ideal for terminating unused ports in signal splitters, circulators, and RF measurement setups, it absorbs incident energy effectively, ensuring signal integrity and equipment protection across a wide temperature range from -55°C to +125°C. Made with rugged brass components and gold or nickel plating, it guarantees durability and reliable performance in demanding environments.
L-COM LCTR1006 RF Dummy Load Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.35:1
- Input Power (CW): 1 Watt, derates to 0.1W @ +125°C
- Input Power (Peak): 250 Watts with 5us pulse, 0.4% duty cycle
- Connector: SMA Male
- Size: Length 0.63 in [16 mm], Width 0.36 in [9.14 mm]
- Weight: 0.011 lbs [4.99 g]
- Material: Brass Gold Contact, Brass Nickel Body and Nut
- Temperature Range: -55°C to +125°C
Buy the Buy INFINITG RF Load Part Number LCTR1006 Online
Purchase the INFINITG RF Dummy Load LCTR1006 online today for unmatched performance across DC to 18 GHz. Designed with a 50 Ohm impedance, 1 Watt power capacity, and SMA male connector, this high-quality load is essential for RF testing, signal termination, and microwave systems. Its rugged construction features brass components with gold or nickel plating, ensuring durability and stable operation in extreme temperatures from -55°C to +125°C. Whether in measurement systems, RF devices, or signal splitters, this load guarantees minimal reflection and maximum accuracy for your projects.
Order your INFINITG SeriesLCTR1006 RF Dummy Load today and ensure reliable signal termination for your high-frequency applications.
Frequently Asked Questions
Where can I buy L-COM LCTR1006?
You can click on the BUY or RFQ button to purchase LCTR1006 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCTR1006?
You can download the LCTR1006 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCTR1006?
L-COM
