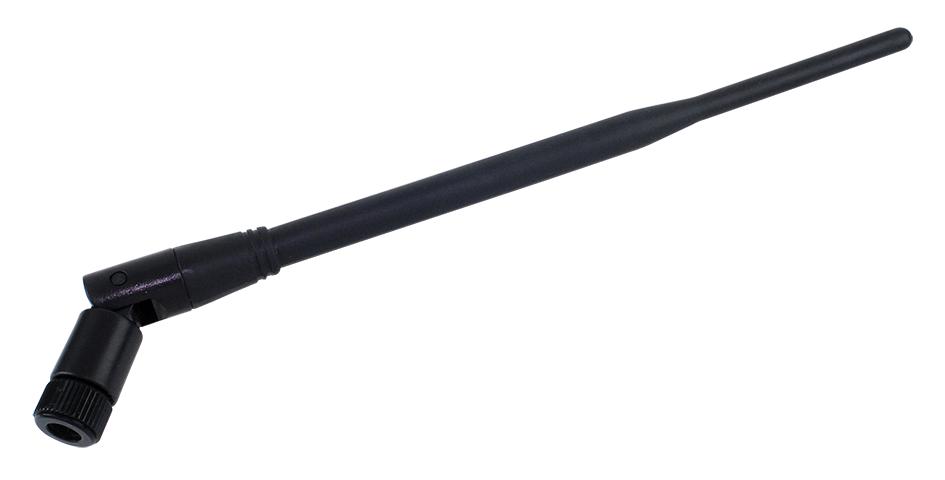

L-COM HG2405RDRSP Wireless Antenna
The HG2405RD-RSP is a 2.4GHz rubber duck wireless antenna designed to provide broad coverage and a gain of 5.5dBi. It features a coaxial sleeve design with an omnidirectional radiation pattern, making it suitable for wireless LANs such as IEEE 802.11b, 802.11g, and 802.11n, as well as Bluetooth and other WLAN applications. The antenna measures 8.2 inches in length and includes a flexible, tilt-and-swivel reverse-polarity SMA connector, allowing for versatile installation angles—vertical, right-angle, or intermediate positions. It is compatible as a replacement RF antenna for many access points and radios equipped with reverse-polarity SMA connectors, including models from D-Link, Linksys, and others.
L-COM HG2405RDRSP Wireless Antenna Specifications:
- Frequency: 2400-2500 MHz
- Gain: 5.5 dBi
- Impedance: 50 Ohm
- VSWR: < 2.0
- Weight: 0.7 oz. (20g)
- Length: 8.0 in. (202mm)
- Diameter: 0.5 in. (13mm)
- Finish: Matte Black
- Connector: Reverse Polarity SMA Plug
- Polarization: Vertical
- Operating Temperature: -40° C to 85° C (-40° F to 185° F)
- Flame Rating: UL 94HB
Buy the L-com Series HG2405RD-RSP 2.4GHz Rubber Duck Antenna: HG2405RD-RSP
Enhance your wireless networks with the high-performance 2.4GHz rubber duck antenna. Designed for broad coverage and easy installation, it features a 5.5dBi gain and a flexible tilt-and-swivel reverse-polarity SMA connector. Perfect for IEEE 802.11b/g/n WLAN systems, Bluetooth, and wireless video applications, its omni-directional pattern ensures reliable signal distribution. Measuring just over 8 inches and finished in matte black, this antenna easily replaces compatible access point antennas, providing robust connectivity in industrial, commercial, and residential settings, available for quick online purchase.
Order your L-com Series HG2405RD-RSP 2.4GHz Rubber Duck Antenna today and give your Wi-Fi or Bluetooth projects the dependable coverage they deserve.
