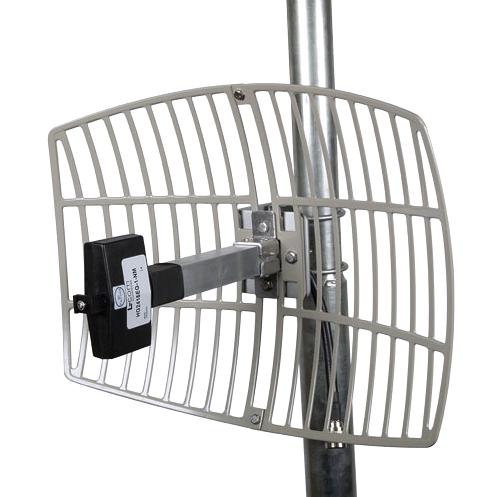

L-COM HG2415EG1NM High-Gain Wireless Grid Antenna
The L-com HG2415EG-1-NM is a lightweight, high-performance grid antenna designed for long-range wireless applications operating from 2400 to 2500 MHz. Constructed from die-cast aluminum with UV-stable powder coat finish, it offers 15 dBi gain, vertical and horizontal polarization options, and a 21° vertical and 16° horizontal beamwidth. Easy to assemble with a Type N male connector, it includes mounting hardware and supports up to 100 Watts power. Its durable design withstands wind speeds up to 124 MPH and temperature ranges from -40°C to +70°C, making it ideal for WLAN backhaul, Wi-Fi systems, and point-to-point or multi-point wireless links.
L-COM HG2415EG1NM High-Gain Wireless Grid Antenna Specifications:
- Frequency Range: 2400 to 2500 MHz
- Gain: 15 dBi
- Polarization: Vertical
- Connector Type: N Male
- Impedance: 50 Ohms
- Input Power: 100 Watts
- Front to Back Ratio: 20 dB
- Horizontal HPBW: 16 Degrees
- Vertical HPBW: 21 Degrees
- Size: Length 14.811 in [300 mm], Width 15.748 in [400 mm], Height 20 in [508 mm]
- Mounting Mast Diameter: 1.57 to 1.96 in [39.88 to 49.78 mm]
- Weight: 3.08647 lbs [1.4 kg]
- Operating Temperature: -40 to +70°C
- Wind Survivability: 124 MPH [199.56 KPH]
- Humidity Range: 5 to 95 %
Buy the Buy Infinite Electronics HG2415EG-1-NM Part Number HG2415EG-1-NM Online
Purchase the High-Gain Wireless Grid Antenna from Infinite Electronics online today to enhance your wireless network’s range and stability. Designed for LTE, WLAN backhaul, Wi-Fi systems, and point-to-point or multipoint communication, this antenna provides 15 dBi gain in a lightweight, durable die-cast aluminum structure with UV-stable powder coating. Easy to install with the included mounting hardware, it supports frequencies from 2400 to 2500 MHz, withstands harsh weather conditions, and ensures robust wireless connections for various outdoor applications. Order now for same-day shipping and elevate your wireless infrastructure.
Buy Infinite Electronics HG2415EG-1-NM now and experience reliable, long-range wireless connectivity with high-gain, weatherproof design.
