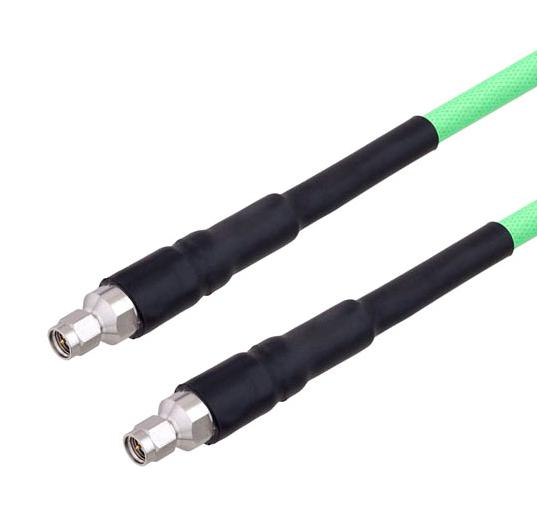

L-COM LCCA30033FT5 SMA Cable Assembly
L-com’s LCCA30033-FT5 is a flexible, low loss SMA male to SMA male cable assembly with a 5 FT length, using LL335i coax. It features a heavy-duty heat shrink boot for durable strain relief and operates up to 18 GHz. This triple-shielded assembly offers shielding effectiveness greater than 95dB, with a tape-wrapped PTFE dielectric that provides an VoP of 83%, resulting in very low insertion loss. Ideal for general purpose, automated test systems, laboratory, antenna range, and long cable runs requiring reliable RF interconnects. Ships same-day, customizable options available.
L-COM LCCA30033FT5 SMA Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.46 dB at 18 GHz, approx 0.1 dB per connector
- Impedance: 50 Ohms
- Velocity of Propagation: 83%
- Shielding Effectiveness: > 95dB
- Capacitance: 25 pF/ft
- Cable Type: LL335i coaxial cable
- Connector Type: SMA Male, MIL-STD-348A
- Connector Material: Beryllium Copper, Gold plated
- Body Material: Passivated Stainless Steel
- Dielectric: Tape wrapped PTFE
- Jacket Material: FEP, Green
- Jacket Outer Diameter: 0.3 in (7.62 mm)
- Cable Length: 5 FT
- Diameter: 0.3 in (7.62 mm)
- Weight: 0.229 lbs (103.87 g)
- Temperature Range: -55°C to +200°C
- Repeated Bend Radius: 1.5 in (38.1 mm)
Buy the INFINITG Series SMA Cable: LCCA30033-FT5
Order the INFINITG SMA Cable Assembly with heavy-duty heat shrink boot today. Designed for durability and low loss at up to 18 GHz, this 5 FT cable ensures excellent shielding, flexible installation, and reliable performance for RF testing, antenna projects, and long cable runs. Ships same-day with customizable options for connector orientation or labeling. Perfect for laboratory use, automated testing, and high-frequency communication systems, providing seamless RF interconnects with exceptional shielding effectiveness and low insertion loss.
Buy INFINITG LCCA30033-FT5 now and experience unmatched reliability and flexible high-frequency performance in RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30033FT5?
You can click on the BUY or RFQ button to purchase LCCA30033FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30033FT5?
You can download the LCCA30033FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30033FT5?
L-COM
