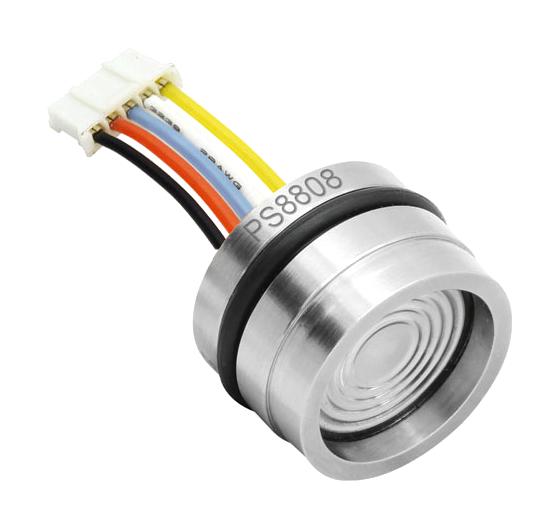

L-COM PS88082000K3CBNG Digital Pressure Sensor
The PS8808-2000k3CBNG is a high-precision digital pressure sensor with a gauge measuring range of 0-2MPa, designed for industrial process control and liquid pressure measurement. It features a stainless steel 316L diaphragm with isolated oil filling for durability and resistance to harsh environments. With I2C communication, 3.3V power supply, and integrated temperature compensation, it offers reliable and accurate pressure data for applications such as HVAC systems, pressure calibration, and aviation. Its compact design ensures easy integration into various industrial and IoT systems.
L-COM PS88082000K3CBNG Digital Pressure Sensor Specifications:
- Pressure Range: 0-2 MPa
- Accuracy (Pressure): ±0.5 % Full Scale
- Accuracy (Temperature): 1.5 °C
- Long Term Stability: 0.3 % Full Scale/year
- Overpressure: 1.5 x Full Scale
- Voltage Supply: 3.3 VDC ±0.1 V
- Output Signal: 5%-95%
- Power Consumption: 2.5 mA
- Response Time (Sampling Interval): 1.5 ms
- Electrical Connection: 5-pin PH2.0
- Material: Stainless Steel 316L diaphragm and housing
- Operating Temperature: -10°C to 80°C
- Storage Temperature: -40°C to 125°C
- Shock Resistance: 10g, 20Hz-2000Hz
- Impact Resistance: 100g, 11ms
- Certifications: ROHS and CE compliant
Buy the Buy INFINITG Pressure Sensor Part Number PS8808-2000k3CBNG Online
Experience the reliability and precision of the INFINITG PS8808-2000k3CBNG digital pressure sensor, designed for industrial process control, HVAC systems, and liquid measurement. Featuring a stainless steel 316L diaphragm, an I2C communication interface, and a 0-2MPa gauge pressure range, this sensor ensures accurate data in harsh environments. Its compact, durable construction makes it suitable for various applications such as pressure calibration, aviation, and smart systems. Order online now to enhance your industrial measurement system.
Get INFINITG PS8808-2000k3CBNG today—built for precision, durability, and reliable liquid pressure measurement in industrial and IoT applications.
Frequently Asked Questions
Where can I buy L-COM PS88082000K3CBNG?
You can click on the BUY or RFQ button to purchase PS88082000K3CBNG from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PS88082000K3CBNG?
You can download the PS88082000K3CBNG datasheet or visit the L-COM website for support.
Who is the manufacturer of PS88082000K3CBNG?
L-COM
