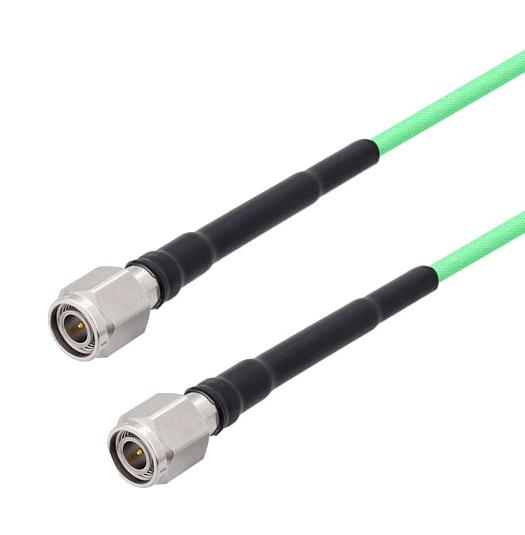

L-COM LCCA30023FT3 RF Cable Assembly
L-com’s LCCA30023-FT3 is a low loss TNC male to TNC male cable assembly with heavy duty heat shrink boot using LL142 coax, 3 feet length, operating up to 18 GHz. The cable features tape wrapped PTFE dielectric with 80% VoP, providing low insertion loss and excellent flexibility for applications like automated test systems, laboratory testing, antenna range use, and long cable runs. The triple shielding, including silver-plated copper layers over tape, ensures >95dB shielding effectiveness. Durable stainless steel connectors and heat shrink strain relief enhance longevity for versatile RF interconnects.
L-COM LCCA30023FT3 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max. 0.37 dB at 18 GHz
- VSWR: 1.35:1 at 18 GHz
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper, Silver Plated
- Dielectric: Tape wrapped PTFE with 80% VoP
- Shielding Layers: Three, silver-plated copper braid and tape
- Jacket Material: FEP, Green
- Cable Length: 3 feet (914.4 mm)
- Cable Diameter: 0.195 inches (4.95 mm)
- Weight: 0.127 lbs (57.61 g)
- Connector Type: TNC Male to TNC Male
- Connector Material: Beryllium Copper with Gold over Nickel plating
- Boot Material: Heavy Duty Heat Shrink
- Operating Temperature Range: -55°C to +200°C
- Center Conductor Impedance: 50 Ohms
- Minimum Bend Radius: 0.975 inches (24.77 mm)
Buy the INFINITG Series RF Cable: TNC Male to TNC Male with Heavy Duty Boot LCCA30023FT3
Purchase the high-quality INFINITG RF cable assembly with TNC male connectors and heavy-duty heat shrink boot. Designed to operate up to 18 GHz, this flexible, low-loss cable ensures superior shielding effectiveness of over 95dB for reliable performance in automated testing, laboratory, antenna, and long cable run applications. The durable construction with stainless steel connectors and FEP jacket guarantees longevity and seamless installation. Order now to enjoy same-day shipping and expert support for your high-frequency RF interconnect needs.
Buy INFINITG Series RF Cable with TNC Male to TNC Male connectors and heavy-duty heat shrink boot, perfect for high-frequency applications up to 18 GHz, now and experience unmatched reliability and performance.
