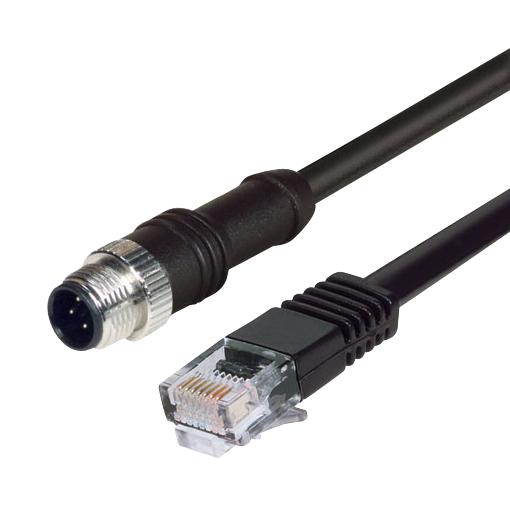

L-COM M12RJ454D1 Ethernet Cable Assembly
The M12 4-position D-coded male/RJ45 male cable assembly is engineered for industrial Ethernet and Fieldbus applications, offering an IP68 waterproof rating for dust and liquid protection. It features a durable polyurethane jacket that resists oil and contaminants, suitable for harsh environments. The assembly operates efficiently within a temperature range of -25°C to 90°C, ensuring reliable performance in demanding settings. Its 1-meter length and PROFINET pin-out configuration 1-1, 2-3, 3-2, 6-4 make it ideal for industrial automation and networking, combining robustness with precision.
L-COM M12RJ454D1 Ethernet Cable Assembly Specifications:
- Connector Type: M12 4-position D-coded male and RJ45 male
- Rating: IP68 waterproof (P1 only)
- Jacket Material: Polyurethane, black
- Operating Temperature: -25°C to 90°C
- Cable Length: 1 meter
- Pin Configuration: 1-1, 2-3, 3-2, 6-4 (PROFINET)
- Pin Material: Copper alloy, gold plated
- Housing Material: Zinc alloy, nickel plated
- Conductor Material: Copper
- Shielding: Aluminumized polyester shield
- Certification: RoHS compliant
Buy the Buy IndustryStandard M12 RJ45 Ethernet Part Number M12RJ454D1 Online
Purchase the reliable Ethernet Cable Assembly designed for industrial Ethernet and Fieldbus applications. With an IP68 waterproof rating, a 1-meter polyurethane jacket resistant to oil and contaminants, and a PROFINET pin-out configuration, this assembly ensures high-performance connectivity in harsh environments. Operating efficiently between -25°C and 90°C, it is ideal for factory automation, industrial networking, and automation systems. Order now online for quick delivery and maintenance-free operation in demanding industrial settings.
Get IndustryStandard M12RJ454D1 today—designed for industrial networking and rugged environments.
Frequently Asked Questions
Where can I buy L-COM M12RJ454D1?
You can click on the BUY or RFQ button to purchase M12RJ454D1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part M12RJ454D1?
You can download the M12RJ454D1 datasheet or visit the L-COM website for support.
Who is the manufacturer of M12RJ454D1?
L-COM
