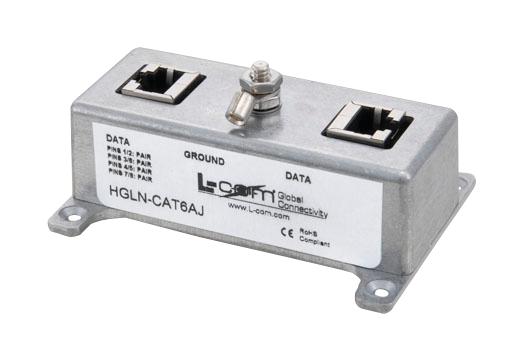

L-COM HGLNCAT6AJ Ethernet Surge Protector
The HGLN-CAT6AJ lightning and surge protector enhances indoor Ethernet networks by providing reliable lightning and surge protection for 10/100/1000/10000 Base-T systems. Constructed from industrial-grade cast aluminum, it features shielded RJ-45 connectors and gas discharge tubes on each pair for superior power handling and surge mitigation. Compatible with PoE/PoE+ devices supporting both Mode A and B, it minimizes high-speed signal distortion with low line-to-line and line-to-ground capacitance. The unit includes a ground lug for effective grounding, integral mounting feet, and helps reduce EMI interference, making it ideal for industrial Ethernet applications.
L-COM HGLNCAT6AJ Ethernet Surge Protector Specifications:
- Ethernet Connectors: 2 Shielded RJ-45 Jacks
- Clamping Voltage Line - Ground: 90 Volts
- Clamping Voltage Line - Line: 90 Volts
- Data Line Impedance: 100 Ohms Balanced
- Pair 1: Pins 1 and 2
- Pair 2: Pins 3 and 6
- Pair 3: Pins 4 and 5
- Pair 4: Pins 7 and 8
- Supported PoE Modes: A and B
- Enclosure Material: Cast Aluminum
- Ground Lug: 12 AWG Max.
- Operating Temperature: -40°C to +80°C
- Weight: 0.13 kg (28 Ibs)
- Dimensions: 3.6 x 1.4 x 1.2 inches (91.4 x 35.5 x 38.1 mm)
- RoHS Compliant
Buy the L-com HGLN-CAT6AJ – Reliable Ethernet Surge Protector for Industrial Applications
Purchase the L-com HGLN-CAT6AJ Ethernet surge protector online and ensure reliable protection for your Industrial Ethernet networks. This high-quality device features gas discharge tubes, shielded RJ-45 connectors, and a sturdy aluminum enclosure to safeguard your equipment against lightning and power surges. Compatible with PoE and PoE+ systems, it supports both Mode A and B, offers excellent grounding with a dedicated ground lug, and operates efficiently in harsh environments from -40°C to +80°C. Easy to install with integral mounting feet, it’s the ideal solution for safeguarding high-speed Ethernet connections in industrial settings.
Get L-com HGLN-CAT6AJ today—built for superior lightning and surge protection in industrial Ethernet setups.
Frequently Asked Questions
Where can I buy L-COM HGLNCAT6AJ?
You can click on the BUY or RFQ button to purchase HGLNCAT6AJ from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part HGLNCAT6AJ?
You can download the HGLNCAT6AJ datasheet or visit the L-COM website for support.
Who is the manufacturer of HGLNCAT6AJ?
L-COM
