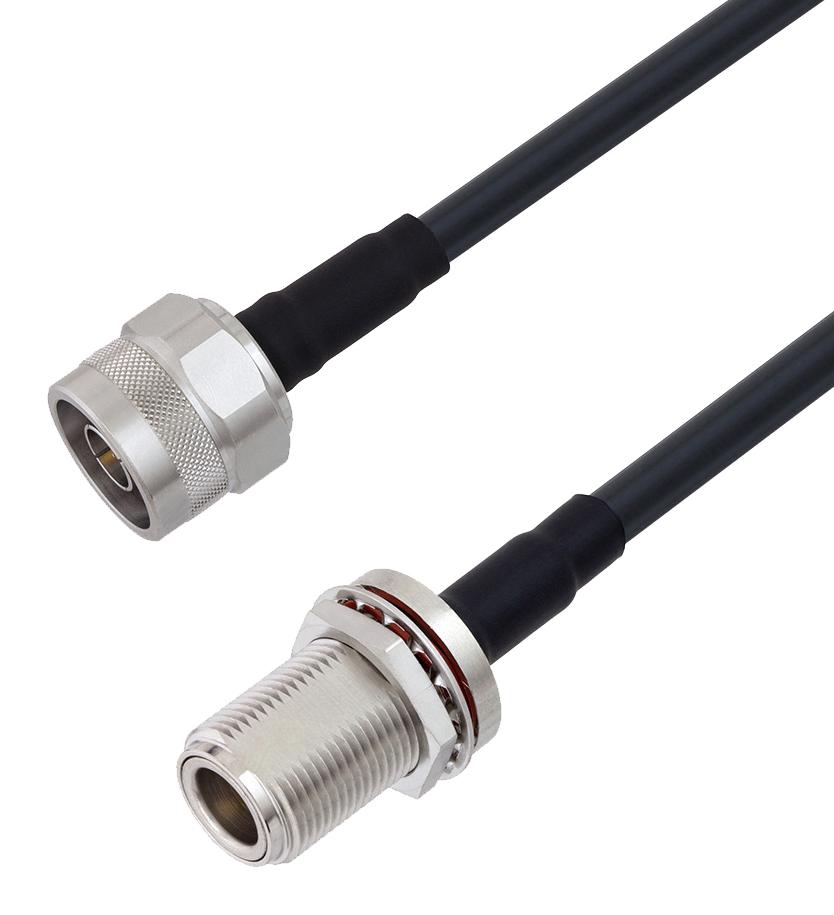

L-COM LCCA30174FT10 RF Cable Assembly
L-com’s LCCA30174-FT10 is a 10-foot low loss N male to N female bulkhead cable assembly with LMR-240 coax, designed for high-frequency applications up to 5.8 GHz. It features Times Microwave components, a PE jacket, double shielding with aluminum tape and tinned copper braid, and provides shielding effectiveness over 90 dB. Its flexible design with a bend radius of 2.5 inches makes it suitable for systems like land mobile radio, cellular, Wi-Fi, and antenna setups. Ideal for panel, rack mount, or external connections, it ensures minimal insertion loss and high performance.
L-COM LCCA30174FT10 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-240
- Connector 1: N Male
- Connector 2: N Female Bulkhead
- Cable Length: 10 feet (304.8 cm)
- Diameter: 0.89 inches (22.61 mm)
- Weight: 0.188 lbs (85.28 g)
- Conductor: Copper, gold-plated
- Dielectric: PE (F)
- Shielding: Aluminum tape + tinned copper braid (> 90 dB)
- Velocity of Propagation: 84%
- Insertion Loss: approximately 0.59 dB at 0.25 GHz, 0.99 dB at 5.8 GHz
- Maximum Bend Radius: 2.5 inches (63.5 mm)
- Operating Temperature: -40°C to +85°C
- Certifications: MIL-STD-348
- Jacket Material: PE, Black
- Jacket Diameter: 0.24 inches (6.1 mm)
Buy the Cor Series LCCA Series N Male to N Female Cable: LCCA30174FT10
Get your Cor Series LCCA30174FT10 N male to N female bulkhead RF cable assembly online today. This 10-foot low loss coaxial cable features high shielding effectiveness over 90 dB, low insertion loss suitable for frequencies up to 5.8 GHz, and robust construction with these qualities make it perfect for radio, Wi-Fi, cellular, and antenna systems. Its flexible design with a 2.5-inch bend radius facilitates easy installation in various environments. Purchase now for reliable, high-performance connectivity for your communications and infrastructure projects, with same-day shipping available.
Order your Cor Series LCCA30174FT10 N male to N female bulkhead cable today and ensure your communication systems operate with maximum efficiency and minimal loss.
Frequently Asked Questions
Where can I buy L-COM LCCA30174FT10?
You can click on the BUY or RFQ button to purchase LCCA30174FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30174FT10?
You can download the LCCA30174FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30174FT10?
L-COM
