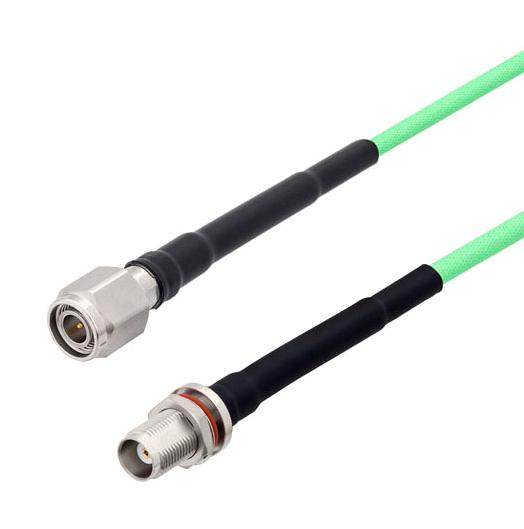

L-COM LCCA30024FT5 RF Cable Assembly
L-com’s LCCA30024-FTS is a low loss TNC male to TNC female bulkhead cable assembly featuring heavy duty heat shrink boot using LL142 coax, 5 feet long. This flexible RF cable operates up to 18 GHz, with a triple shielding effectivity greater than 95dB, ensuring excellent signal integrity. The LL142 coax includes tape wrapped PTFE dielectric with an 80% VoP, providing very low insertion loss and high performance for general purpose, automated test systems, laboratory, antenna range, and long cable runs. Constructed with durable stainless-steel connectors and shielded by silver plated copper layers, it offers reliable external connections in demanding environments.
L-COM LCCA30024FT5 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Connector Type: TNC Male to TNC Female Bulkhead
- Shielding Effectiveness: > 95dB
- Dielectric: Tape wrapped PTFE with 80% VoP
- Outer Jacket Material: FEP, Green
- Cable Length: 5 feet
- Cable Diameter: 0.195 inches
- Inner Conductor Material: Copper, Silver Plated
- Shield Layers: Silver Plated Copper Tape, Copper Braid
- Operating Temperature Range: -55°C to +200°C
- Insertion Loss Max: 0.55 dB at 18 GHz
- Weight: 0.187 lbs
- Repeated Bend Radius: 3 inches
- Connector Material: Stainless Steel, Gold over Nickel plating
- Boot Material: Heavy Duty Heat Shrink
Buy the Buy INFINITG Low Loss TNC Male to TNC Female Bulkhead Cable Part Number LCCA30024-FT5 Online
Order the INFINITG LCCA30024-FT5 RF cable assembly online today to enjoy reliable, high-quality connectivity solutions. Designed for precision applications, this 5 ft cable operates up to 18 GHz with low insertion loss and superior shielding. Its durable stainless-steel connectors and heavy-duty heat shrink boot ensure long-lasting performance in demanding environments, making it ideal for automated testing, laboratory work, antenna setups, and extensive cable runs. Purchase now for quick same-day shipping and enhance your system’s signal integrity with this versatile RF connector assembly.
Buy INFINITG LCCA30024-FT5 now and experience unmatched reliability and high-frequency performance with durable heavy-duty booting and triple shielding.
Frequently Asked Questions
Where can I buy L-COM LCCA30024FT5?
You can click on the BUY or RFQ button to purchase LCCA30024FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30024FT5?
You can download the LCCA30024FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30024FT5?
L-COM
