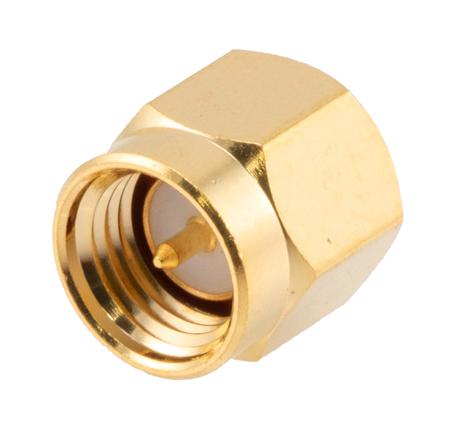

L-COM LCAD30005 RF Coaxial Adapter
L-com's RF coaxial adapter connects SMA male to UMCX jack with a straight design, supporting frequencies up to 6 GHz. Made from tri-metal with gold plating, it features a robust threaded coupling for dependable RF connections. Suitable for applications requiring compact, miniature coaxial connections on printed circuit boards and micro coax cables. It operates within -40°C to +90°C, offering a maximum VSWR of 1.3:1 and operating voltage of 100 Vrms. Ideal for RF systems needing reliable, high-quality adapters ensuring minimal signal loss and secure connections.
L-COM LCAD30005 RF Coaxial Adapter Specifications:
- Impedance: 50 Ohm
- Frequency Range: up to 6 GHz
- VSWR: 1.3:1
- Maximum Operating Voltage: 100 Vrms
- Material: Brass with Gold plating, PTFE insulation
- Connector Type: SMA Male / UMCX Jack
- Length: 0.55 inches (13.97 mm)
- Width: 0.315 inches (8 mm)
- Temperature Range: -40°C to +90°C
- Mating Torque: 3 to 5 in-lbs (0.34 to 0.57 Nm)
- Hex Size: 5/16 inch
Buy the Buy Infinite Electronics RF Coaxial Adapter Part Number LCAD30005 Online
Purchase the RF coaxial adapter connecting SMA male to UMCX jack from Infinite Electronics online. Designed for high-frequency applications up to 6 GHz, it features gold plating for durability and excellent conductivity. Its compact size makes it ideal for printed circuit boards and micro coax cables, offering reliable performance with a maximum VSWR of 1.3:1. Enjoy same-day shipping for quick integration into your RF systems, ensuring your projects maintain precision, stability, and minimal signal loss.
Order your Infinite Electronics SMA Male to UMCX Jack Adapter LCAD30005 today and ensure reliable, high-frequency RF connections for your projects.
Frequently Asked Questions
Where can I buy L-COM LCAD30005?
You can click on the BUY or RFQ button to purchase LCAD30005 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30005?
You can download the LCAD30005 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30005?
L-COM
