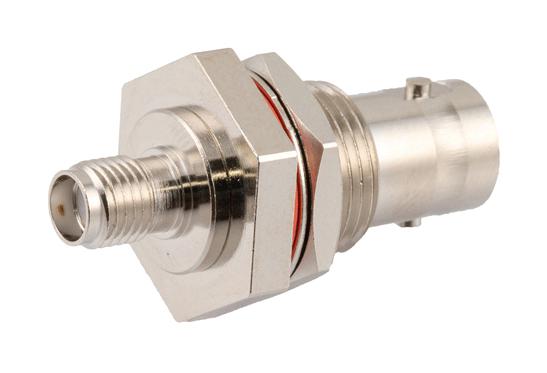

L-COM LCAD30013 RF Coaxial Adapter
This RF coaxial adapter features SMA female and BNC female connectors in a bulkhead configuration, designed for reliable high-frequency connections up to 4 GHz. Made from brass with nickel plating, it provides excellent durability and electrical performance, including gold-plated center contacts for enhanced signal integrity. Suitable for various applications requiring secure RF connections, it supports operating voltages up to 500 Vrms and dielectric withstand voltage of 1,500 Vrms. With a length of 1.32 inches and width of 0.7 inches, it ensures easy installation and a robust, dependable connection in professional RF systems.
L-COM LCAD30013 RF Coaxial Adapter Specifications:
- Impedance: 50 Ohm
- Frequency Range: Up to 4 GHz
- Operating Voltage (AC): 500 Vrms
- Dielectric Withstanding Voltage (AC): 1,500 Vrms
- Material: Brass with Nickel Finish, Phosphor Bronze contacts with Gold plating, PTFE Insulation
- Dimensions: Length 1.32 inches, Width 0.7 inches
- Temperature Range: -65°C to +165°C
- Connector Types: SMA Female, BNC Female
- Mounting: Bulkhead
- Polarity: Standard
Buy the L-com Series RF Coaxial Adapter: LCAD30013
Enhance your RF system with the high-quality L-com Series RF Coaxial Adapter, model LCAD30013. Designed with SMA female and BNC female bulkhead connectors, it offers a secure and reliable connection up to 4 GHz. Constructed from durable brass with nickel plating and gold-plated contacts, this adapter provides excellent signal integrity and lifetime reliability. Suitable for professional RF applications, it features a compact size of 1.32 inches length and 0.7 inches width, supporting operating voltages up to 500 Vrms. Perfect for demanding high-frequency environments, it ships quickly for your convenience.
Order your L-com Series RF Coaxial Adapter LCAD30013 today and ensure dependable high-frequency RF connections in your professional projects.
Frequently Asked Questions
Where can I buy L-COM LCAD30013?
You can click on the BUY or RFQ button to purchase LCAD30013 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30013?
You can download the LCAD30013 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30013?
L-COM
