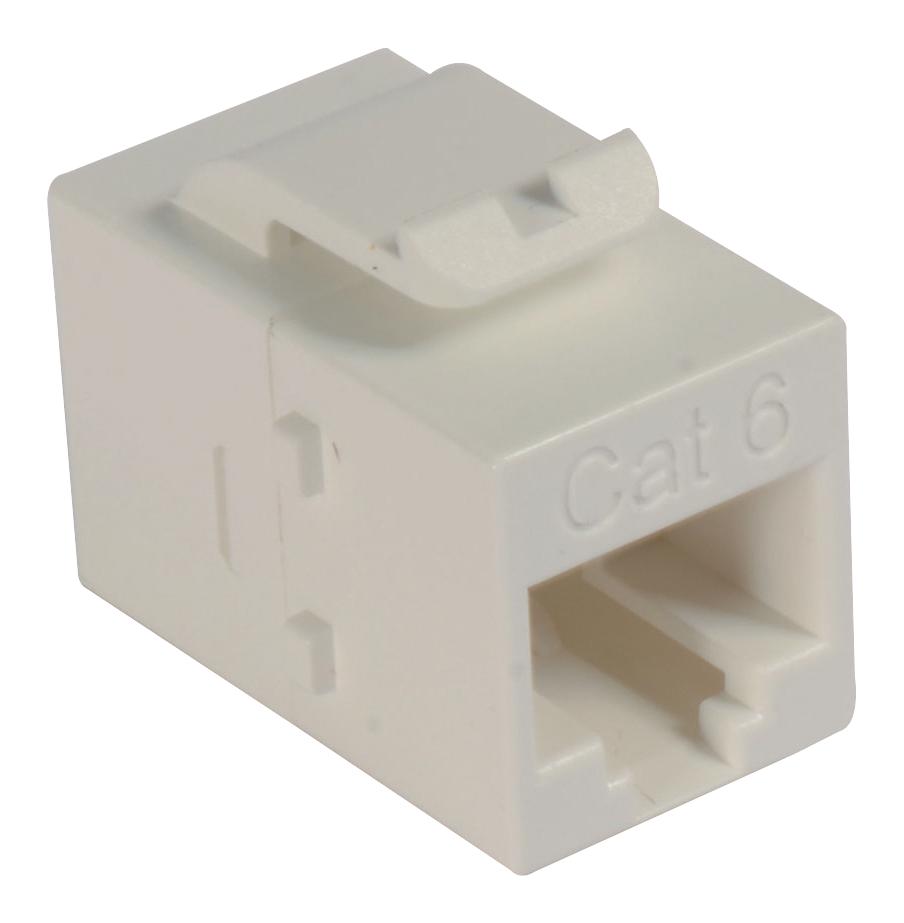

L-COM TDG1026KC6MINI Ethernet Mini Coupler
L-Com's high-performance Ethernet mini couplers offer a compact, efficient solution for connecting two Ethernet cables in tight spaces. Measuring less than an inch, these couplers support dual wiring standards (EIA-568A/B) to ensure broad compatibility. Designed for in-line use, they enable better airflow, simplified installation behind panels, and reduced cable bending stress. Their stackable design allows horizontal or vertical alignment without gaps, making them suitable for various applications such as networking, data management, industrial, and telecommunications environments. Constructed with UL94V-0 plastic housing and gold-plated contacts for reliable connectivity.
L-COM TDG1026KC6MINI Ethernet Mini Coupler Specifications:
- Housing Material: PC, UL94V-0, White
- Contacts: Phosphor Bronze, 50 Micro-inches Gold Plate Over 100 Micro-inches Nickel Plate
- Insertion Life: 750 Mating Cycles
- Contact Force: 100 grams
- Plug Retention Force: 11 LBF minimum
- Operating Temperature Range: -10°C to 60°C
- Storage Temperature Range: -40°C to 68°C
- Humidity Range: 10% to 90% RH
- Insulation Resistance: 500 MΩ
- Dielectric Withstanding Voltage: 1000 VAC
- DC Current Rating: 1.5 Amps
- DC Resistance: 0.10 Ω
- Contact Resistance: 20 mΩ
- Compatible with Category 6 wiring and standard RJ45 connectors
- Dimensions: Less than 1 inch length
- Supports stacking in various configurations for flexible network installation
Buy the L-Com Series Mini Ethernet Coupler: TDG1026KC6MINI
Enhance your network setup with the compact and reliable Ethernet mini coupler from L-Com. Designed for efficiency and durability, it supports dual wiring standards for versatile applications in networking, industrial, and telecommunications environments. Easy to install behind panels or in tight spaces, this coupler ensures strong connectivity and flexibility. Made with UL94V-0 plastic housing and gold-plated contacts for optimal performance, it’s the perfect choice for professionals seeking a durable, high-quality solution to streamline their Ethernet connections. Purchase online today for fast, reliable delivery.
Buy L-Com TDG1026KC6MINI now and experience unmatched reliability and performance in compact Ethernet networking solutions.
Frequently Asked Questions
Where can I buy L-COM TDG1026KC6MINI?
You can click on the BUY or RFQ button to purchase TDG1026KC6MINI from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TDG1026KC6MINI?
You can download the TDG1026KC6MINI datasheet or visit the L-COM website for support.
Who is the manufacturer of TDG1026KC6MINI?
L-COM
