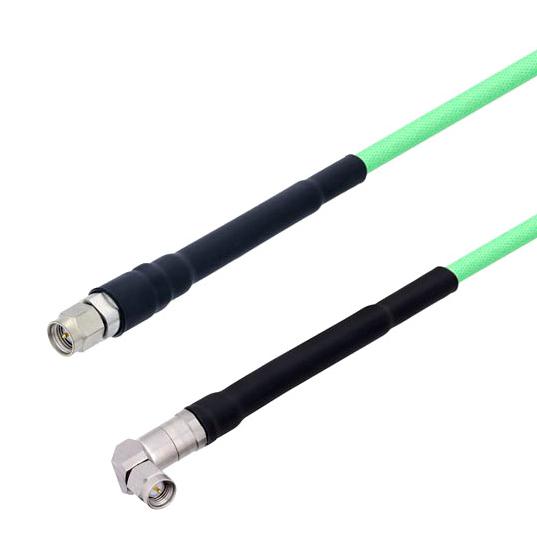

L-COM LCCA30012FT5 SMA Cable Assembly
The L-com LCCA30012-FTs is a low loss SMA male to SMA male right angle cable assembly with heavy-duty heat shrink boot using LL142 coax. This 5 FT flexible RF cable features a tape-wrapped PTFE dielectric with 80% VoP, offering very low insertion loss across a frequency range up to 18 GHz. The triple shielding, comprising silver-plated copper braid and tape, provides shielding effectiveness > 95dB. Its durable stainless-steel connectors and flexible construction make it ideal for tight spaces, antenna test, automated systems, and long cable runs; ready for same-day shipment.
L-COM LCCA30012FT5 SMA Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.69 dB at 18 GHz
- Velocity of Propagation: 80%
- Shielding Effectiveness: > 95 dB
- Impedance: 50 Ohms
- Connector Type: SMA Male to SMA Male Right Angle
- Connector Material: Beryllium Copper, Gold over Nickel
- Dielectric: Tape wrapped PTFE
- Cable Type: LL142 coaxial cable
- Jacket Material: FEP, Green
- Cable Diameter: 0.195 inches
- Cable Length: 5 feet
- Weight: 0.187 lbs
- Minimum Bend Radius: 0.975 inches
- Operating Temperature Range: -55°C to +200°C
- Shielding Layers: Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid
- Body Material: Passivated Stainless Steel
- Coupling Nut: Passivated Stainless Steel
Buy the Cor Series SMA Cable: LCCA30012-FT5
Purchase the durable 5 ft low loss SMA male to SMA male right angle cable with heat shrink boot from Cor Connectors. Designed for frequencies up to 18 GHz, it features triple shielding with silver-plated copper layers, ensuring superior performance and minimal signal loss. Ideal for applications such as automated test systems, antenna installations, and long-distance RF connections, its flexible design and rugged connectors provide excellent durability in tight spaces. Order now online for same-day shipping and reliable high-frequency connectivity.
Order your Cor Series SMA Cable LCCA30012-FT5 today and ensure reliable connectivity for your high-frequency applications and testing needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30012FT5?
You can click on the BUY or RFQ button to purchase LCCA30012FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30012FT5?
You can download the LCCA30012FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30012FT5?
L-COM
