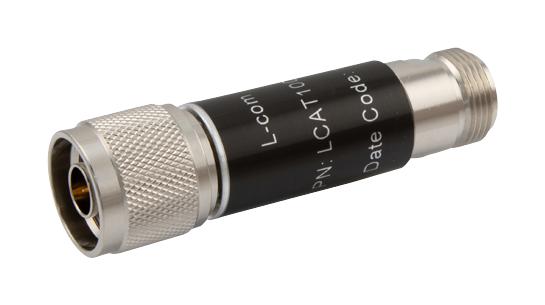

L-COM LCAT100304 RF Fixed Attenuator
The L-com 2W/4dB RF Fixed Attenuator with N male to N female connectors is designed for precise signal attenuation in RF applications up to 3 GHz. Made of brass with nickel plating, it features a maximum power rating of 2 Watts and is suitable for instrumentation, RF testing, and production systems. Its robust construction ensures minimal signal reflection with a VSWR of less than 1.2:1. Compact and reliable, this attenuator is ideal for impedance matching and protecting sensitive equipment from signal overloads, ensuring accurate and consistent measurements.
L-COM LCAT100304 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 3 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 4 dB
- Attenuation Accuracy: 4 dB
- VSWR: < 1.2:1
- Input Power Peak: 500 Watts (pulse, 0.5%)
- Input Power CW: 2 Watts
- Size: Length 2.76 in (70 mm), Diameter 0.79 in (20 mm)
- Body Material: Brass with Nickel plating
- Connectors: N Male to N Female, Brass, Nickel
- Operating Temperature: -55°C to +125°C
- Weight: 0.1543 lbs (70 g)
Buy the Buy INFINITG RF Fixed Attenuator Part Number LCAT1003-04 Online
Enhance your RF testing and signal management with the INFINITG RF Fixed Attenuator, featuring N connectors, 2 Watt power capability, and 4 dB attenuation. Designed for precision, stability, and durability, this component offers excellent impedance matching up to 3 GHz. Its robust brass construction with nickel plating withstands harsh environments, ensuring reliable performance. Ideal for instrumentation, RF measurement, and production systems, it protects equipment and ensures accurate signal levels. Purchase online today to improve your RF system's efficiency and accuracy.
Buy INFINITG LCAT1003-04 now and experience unmatched reliability and performance in RF signal attenuation for professional applications.
Frequently Asked Questions
Where can I buy L-COM LCAT100304?
You can click on the BUY or RFQ button to purchase LCAT100304 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100304?
You can download the LCAT100304 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100304?
L-COM
