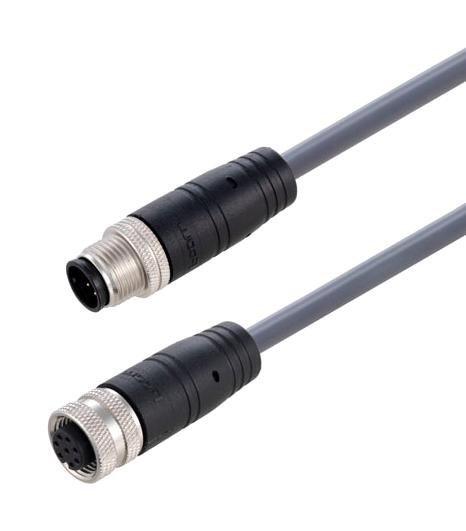

L-COM TRG883C4G3M M12 Connector Assembly
The TRG883-C4G-3M is a high-quality unshielded M12 cable assembly designed for telecommunication and automation applications. It features a PVC-gray jacket, molded hood, and brass nickel-plated screw nuts. The cable has 8 positions with A-coding, stranded tin-plated copper conductors, and a temperature range of -25°C to +105°C. Suitable for environments requiring IP67 ingress protection, it supports up to 30 V AC/DC and 2 A current, ensuring reliable and durable connectivity in industrial settings.
L-COM TRG883C4G3M M12 Connector Assembly Specifications:
- Cable Type: M12 8P A-Coded
- Jacket Material: PVC, Gray, UV and V-O resistant
- Contact Material: Phosphor Bronze with gold plating
- Number of Positions: 8
- Voltage Rating: 30 V AC/DC
- Max Current: 2 A
- Operating Temperature Range: -25°C to +105°C
- Ingress Protection Rating: IP67 when mated
- Cable Length Options: 0.5 m to 10 m
- Connector Style: Female/Male, Unsheilded, Brass Nut
- Environmental Resistance: UV, V-O rated for outdoor applications
- Material: PVC jacket, brass nickel-plated screw nut, stranded copper conductors
Buy the Connector Series M12: TRG883C4G3M
Purchase the M12 connector assembly TRG883-C4G-3M online today for dependable industrial connectivity. Featuring a durable PVC-gray jacket, IP67 ingress protection, and 8-position A-coding, this assembly supports 30 V and 2 A, ideal for harsh environments. Its compact design with brass nickel-plated nuts and gold-plated contacts ensures reliable signals and power transfer. Easy to install and suitable for outdoor or indoor use, order this connector assembly now for your automation and telecommunication projects, guaranteeing high quality and long-lasting performance.
Order your high-performance M12 connector assembly, TRG883-C4G-3M, today and ensure reliable industrial connectivity with IP67 protection.
Frequently Asked Questions
Where can I buy L-COM TRG883C4G3M?
You can click on the BUY or RFQ button to purchase TRG883C4G3M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG883C4G3M?
You can download the TRG883C4G3M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG883C4G3M?
L-COM
