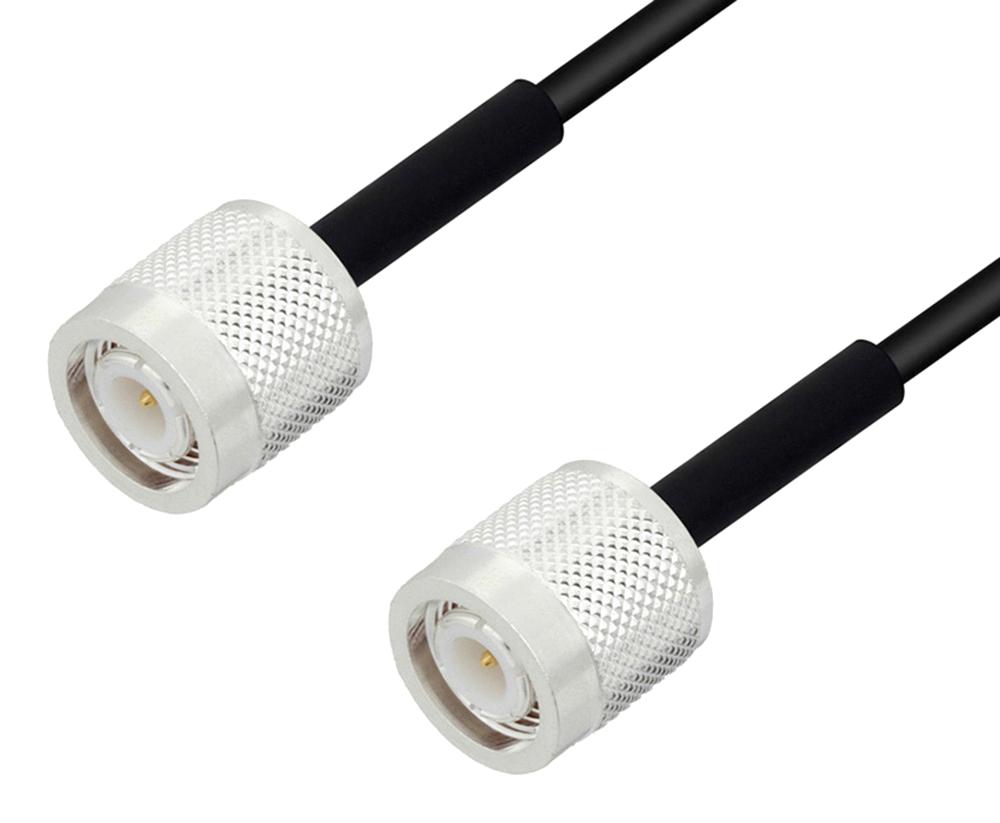

L-COM LCCA30152FT1 TNC Cable Assembly
L-com’s LCCA30152-FT1 is a 1-foot low-loss TNC male to TNC male cable assembly using LMR-100 coax, designed for applications up to 5.8 GHz. Featuring Times Microwave components and a PVC jacket, this flexible RF cable offers excellent shielding efficiency greater than 90 dB, low insertion loss, and a bend radius of 1 inch. Ideal for radio, cellular, Wi-Fi, and antenna installations, it provides reliable performance and easy customization for various communication systems, ensuring high-quality signal transmission and durability in demanding environments.
L-COM LCCA30152FT1 TNC Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 66%
- Insertion Loss (Typ.): 0.31 dB at 0.25 GHz, 0.44 dB at 5.8 GHz
- Shielding Effectiveness: >90 dB
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper Clad Steel
- Dielectric: PE
- Cable Length: 1 ft (custom lengths available)
- Diameter: 0.6 in [15.24 mm]
- Weight: 0.198 lbs [89.81 g]
- Jacket Material: PVC, Black
- Maximum Bend Radius: 1 in [25.4 mm]
- Environmental Temp Range: -40°C to +85°C
- Connectors: TNC Male to TNC Male
- Shield Layers: Aluminum Tape, Tinned Copper Braid
- DC Resistance Inner Conductor: 30.8 Ohms/1000 ft
- DC Resistance Outer Conductor: 9.5 Ohms/1000 ft
- Voltage Rating: 2,000 Vrms
Buy the Buy INFINITG Low Loss TNC Cable Part Number LCCA30152-FT1 Online
Purchase the INFINITG Series TNC Cable Assembly with 1 ft LMR-100 coax today for reliable, high-quality RF signal transmission up to 5.8 GHz. Designed with Times Microwave components and a durable PVC jacket, this low loss, shielded cable offers exceptional performance for antenna setups, land mobile radio systems, Wi-Fi, and cellular networks. Its flexible design with a bend radius of just 1 inch makes installation easy in tight spaces. Order now to get same-day shipping and experience dependable connectivity tailored for demanding communication environments.
Order your INFINITG SeriesLCCA30152-FT1 low loss TNC cable today and ensure high-performance connectivity for your radio and wireless projects.
