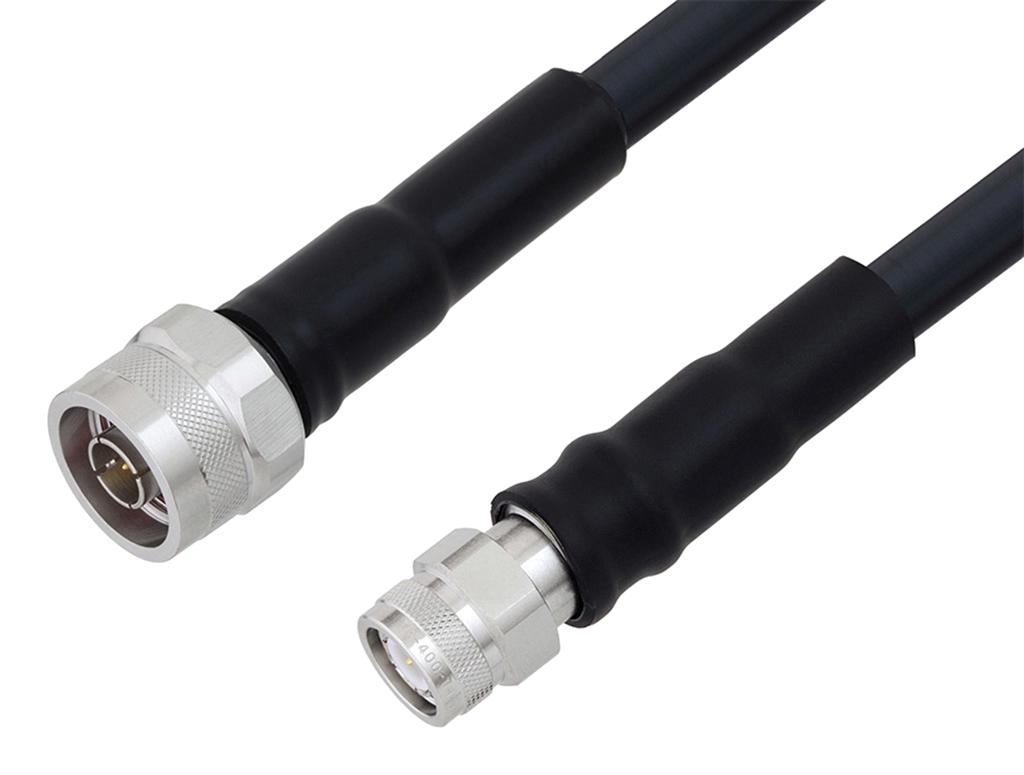

L-COM LCCA30305FT10 RF Cable Assembly
L-com’s LCCA30305-FT10 is a low loss N male to TNC male cable assembly using LMR-400 coax, 10 ft length, with Times Microwave Components. Crafted with PE dielectric at 85% VoP, it offers very low insertion loss and high shielding effectiveness over 90 dB. Suitable for applications like land mobile radio, cellular, Wi-Fi, and antenna installations, it operates up to 6 GHz. The assembly features durable connectors, a flexible coax cable, and excellent electrical performance for reliable communication systems. Same-day shipping is available for custom and stock configurations.
L-COM LCCA30305FT10 RF Cable Assembly Specifications:
- Frequency Range: 6 GHz
- VSWR: 1.41
- Velocity of Propagation: 85%
- RF Shielding: 90 dB
- Group Delay: 1.2 ns/ft
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000ft
- DC Resistance Outer Conductor: 1.65 Ohms/1000ft
- Jacket Material: PE
- Jacket Diameter: 0.405 inches
- Bend Radius: 4 inches
- Connectors: N Male, TNC Male
- Impedance: 50 Ohms
- Cable Length: 10 ft
- Inner Conductors: Solid Copper Clad Aluminum
- Shield Layers: Aluminum tape, Tinned copper braid
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -70°C to +85°C
- Minimum Bend Radius: 1 inch
- Weight: 0.262 lbs
Buy the INFINITG LCCA30305-FT10 – Reliable RF Cable Assemblies for Industrial Applications
Purchase the INFINITG LCCA30305-FT10 low loss RF cable assembly online and enjoy same-day shipping. Ideal for high-frequency applications up to 6 GHz, this 10 ft assembly features durable connectors, high shielding effectiveness over 90 dB, and flexible LMR-400 coax for reliable performance in wireless, radio, and antenna installations. Designed with PE dielectric at 85% VoP, it ensures minimal insertion loss and excellent electrical properties. Perfect for professional and technical setups requiring high-quality, quick-delivery cable solutions.
Get INFINITG LCCA30305-FT10 today—crafted for low loss performance and durability in demanding communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30305FT10?
You can click on the BUY or RFQ button to purchase LCCA30305FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30305FT10?
You can download the LCCA30305FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30305FT10?
L-COM
