L-COM LCCA30004FT1 SMA Cable Assembly
L-com's SMA male right angle to SMA male right angle cable uses 402SS Series coax with a heavy-duty boot, operating up to 18 GHz. This 1.0 ft flexible coaxial cable offers excellent shielding over 110dB, with double shielding including silver-plated copper braid and tape, ensuring high performance. Designed for tight spaces, it features stainless-steel connectors, PTFE dielectric, and durable FEP jacket for harsh environments. Ideal for laboratory, test systems, and general-purpose applications requiring reliable RF connections in limited spaces.
L-COM LCCA30004FT1 SMA Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max. 0.404 dB at 3 GHz, 1.065 dB at 18 GHz
- Shielding Effectiveness: > 110 dB
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Outer Diameter: 0.315 inches
- Cable Length: 1.0 ft
- Jacket Material: FEP, Tan
- Connector Type: SMA Male Right Angle
- Connector Material: Brass with Gold plating
- Dielectric: PTFE
- Weight: 40.82 g
- Operating Temperature Range: -55°C to +165°C

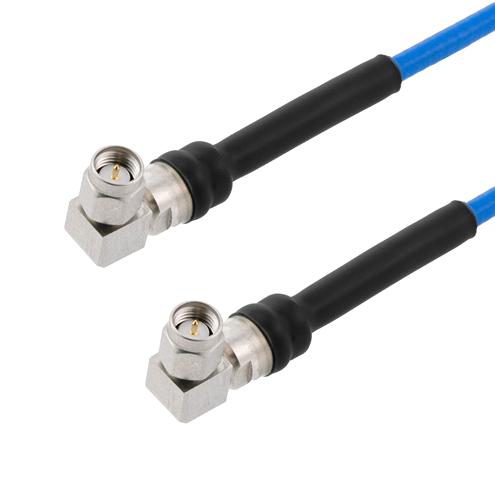

Buy the L-com Series SMA Cable: LCCA30004
Order the L-com SMA right angle to SMA right angle coaxial cable today and enjoy same-day shipping. Designed with durable stainless-steel connectors, double shielding, and a flexible PTFE dielectric, this 1.0 ft cable is perfect for tight installations, laboratory environments, and RF test systems. Operates up to 18 GHz with excellent shielding effectiveness over 110dB, ensuring high-quality signal transmission. Ideal for professional applications requiring stable, high-frequency connections in confined spaces.
Buy L-com SMA right angle to SMA right angle cable with heavy-duty shield and 18 GHz bandwidth now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30004FT1?
You can click on the BUY or RFQ button to purchase LCCA30004FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30004FT1?
You can download the LCCA30004FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30004FT1?
L-COM
