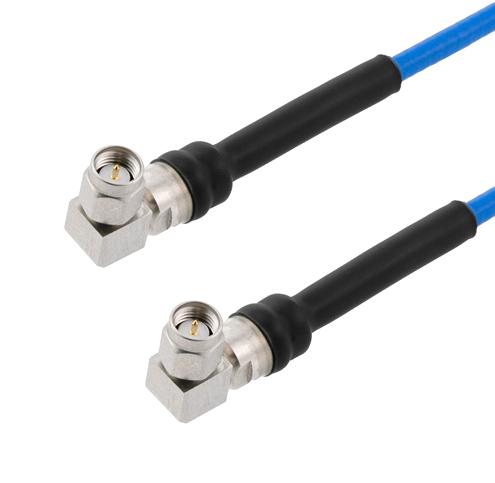

L-COM LCCA30004FT4 RF coaxial cable
L-com's flexible 4.0 ft SMA male right angle to SMA male right angle coaxial cable assembly features 402SS Series coax with a heavy-duty boot. Operating up to 18 GHz, it provides excellent shielding over 110dB, making it ideal for tight spaces and high-frequency applications such as laboratory testing and automated RF systems. The assembly includes durable stainless steel connectors, a PTFE dielectric, and double shielding with a silver-plated copper braid and tape. Its precision design ensures reliable performance and longevity in demanding environments.
L-COM LCCA30004FT4 RF coaxial cable Specifications:
- Frequency Range: 0 to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 1.094 dB at 3 GHz, 1.424 dB at 5 GHz, 2.117 dB at 10 GHz, 2.985 dB at 18 GHz
- Shielding Effectiveness: > 110 dB
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Outer Diameter: 0.315 in (8 mm)
- Cable Length: 4.0 ft
- Dielectric Material: PTFE
- Conductor Material: Copper, Silver Plated
- Shield Layers: Silver Plated Copper Tape and Braid
- Jacket Material: FEP, Tan
- Weight: 0.21 lbs (95.25 g)
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
- Connector Type: SMA Male Right Angle to SMA Male Right Angle
- Operating Temperature Range: -55°C to +165°C
- Connector Material: Brass, Gold or Nickel Plating
- Connector Specification: MIL-STD-348A
- Hex Size: 5/16 inch
- Torque: 12 in-lbs (1.36 Nm)
Buy the Buy Infinite Electronics SMA Male Right Angle Cable Part Number LCCA30004 Online
Purchase the Infinite Electronics SMA male right angle coaxial cable assembly with 402SS Series coax, 4.0 ft length, and heavy-duty boot. Designed for high-frequency applications up to 18 GHz, it features over 110dB shielding for excellent signal integrity. Its durable stainless steel connectors and PTFE dielectric ensure long-lasting performance in laboratory, automated testing, and tight-space installations. Enjoy same-day shipping and custom options for connector orientation, labeling, and testing documentation, making it the ideal choice for professional RF systems and engineering needs.
Get Infinite Electronics SMA Part Number LCCA30004 today—designed for high-frequency, reliable connections in tight spaces and demanding RF environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30004FT4?
You can click on the BUY or RFQ button to purchase LCCA30004FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30004FT4?
You can download the LCCA30004FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30004FT4?
L-COM
