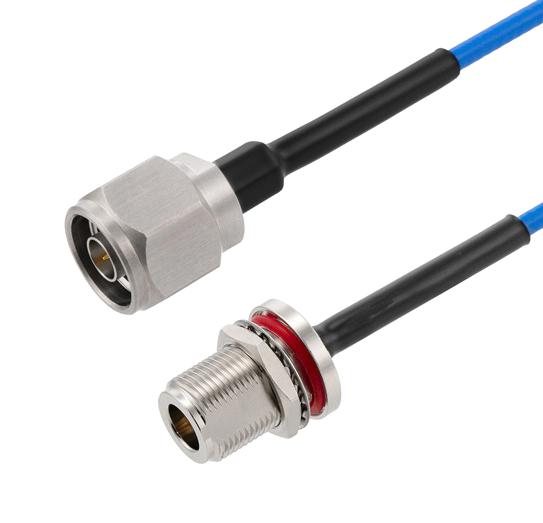

L-COM LCCA30010FT10 RF Coaxial Cable Assembly
L-com's flexible N male to N female bulkhead coaxial cable assembly measures 10 feet and features 402SS Series coax with a heavy-duty boot. Operating up to 18 GHz, it offers excellent shielding over 110dB, making it suitable for high-frequency applications like laboratory, RF interconnects, and automated test systems. The assembly includes stainless steel connectors with gold and nickel plating, PTFE dielectric, and a FEP jacket, ensuring durability, flexibility, and reliable external connections on enclosures and rack systems.
L-COM LCCA30010FT10 RF Coaxial Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Max Insertion Loss: 2.522 dB at 18 GHz
- Velocity of Propagation: 70%
- Shielding Effectiveness: > 110dB
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Connector Type: N Male to N Female Bulkhead
- Impedance: 50 Ohms
- Cable Type: 402SS Series coax
- Inner Conductor: Stranded Copper, Silver Plated
- Dielectric: PTFE
- Shielding: Silver Plated Copper Tape and Braid
- Jacket Material: FEP (Tan)
- Jacket Diameter: 0.163 in (4.14 mm)
- Minimum Bend Radius: 1 in (25.4 mm)
- Cable Length: 120 in (10 ft)
- Connector Material: Brass with Gold and Nickel Plating
- Temperature Range: -55°C to +165°C
- Weight: 0.43 Ibs (195.04 g)
Buy the INFINITG Series RF Cable: LCCA30010
Order the INFINITG Series RF Coaxial Cable Assembly wirelessly or online today—the 10-foot flexible N male to N female bulkhead connector ensures excellent shielding, durability, and high-frequency operation up to 18 GHz. Perfect for laboratory, RF interconnects, and automated test systems, this assembly features robust stainless steel connectors, PTFE dielectric, and a heavy-duty boot for enhanced longevity and flexible routing. Enjoy same-day shipping and custom options for connector orientation, labeling, and testing to meet your specific application needs.
Buy INFINITG Series N male to N female bulkhead coaxial cable with heavy-duty boot now and experience unmatched durability and high-frequency performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30010FT10?
You can click on the BUY or RFQ button to purchase LCCA30010FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30010FT10?
You can download the LCCA30010FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30010FT10?
L-COM
