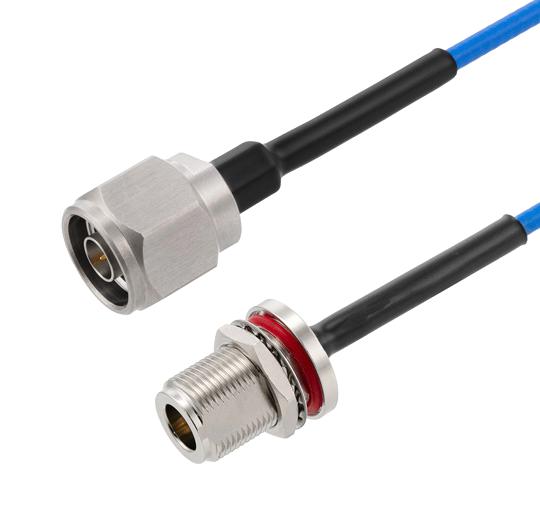

L-COM LCCA30010FT4 RF Bulkhead Cable
L-com's flexible N to N bulkhead cable assembly, 4.0 feet long, features 402SS Series coax with heavy-duty boots and stainless steel connectors. Operating up to 18 GHz, it offers excellent shielding effectiveness over 110dB, making it ideal for RF interconnects in laboratory, automated test systems, and rack-mount applications. The cable has a PTFE dielectric, FEP jacket, and withstands temperatures from -55°C to +165°C. Its durable construction supports tight bends and flexure, ensuring reliable performance in demanding environments.
L-COM LCCA30010FT4 RF Bulkhead Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 70 %
- Insertion Loss: Max 1.142 dB at 18 GHz
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Length: 4.0 ft
- Cable Diameter: 0.315 in
- Weight: 0.34 lbs
- Jacket Material: FEP, Tan
- Jacket Diameter: 0.163 in
- Inner Conductor: Copper, Silver Plated
- Dielectric: PTFE
- Shielding: Double shield (Silver plated copper tape and braid)
- Connector Type: N Male to N Female Bulkhead
- Connector Material: Brass, Gold Plated
- Temperature Range: -55°C to +165°C
- Connector Standards: MIL-STD-348A
- Minimum Bend Radius: 1 in
Buy the Buy INFINITG N Male to N Female Bulkhead Cable Part Number LCCA30010 Online
Purchase the INFINITG N Male to N Female bulkhead RF cable assembly online for reliable, high-performance connections up to 18 GHz. This flexible, durable cable features double shielding for superior signal integrity, heavy-duty boots for outstanding strain relief, and stainless-steel connectors with gold plating for long-lasting corrosion resistance. Its PTFE dielectric and FEP jacket ensure excellent flexibility and temperature resilience from -55°C to +165°C. Perfect for laboratory, automated test systems, or rack-mount applications, this 4-foot cable offers exceptional shielding effectiveness over 110dB and is shipped same-day for fast delivery.
Get INFINITG N Male to N Female Bulkhead Cable today—built for precision, durability, and high-frequency performance up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCCA30010FT4?
You can click on the BUY or RFQ button to purchase LCCA30010FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30010FT4?
You can download the LCCA30010FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30010FT4?
L-COM
