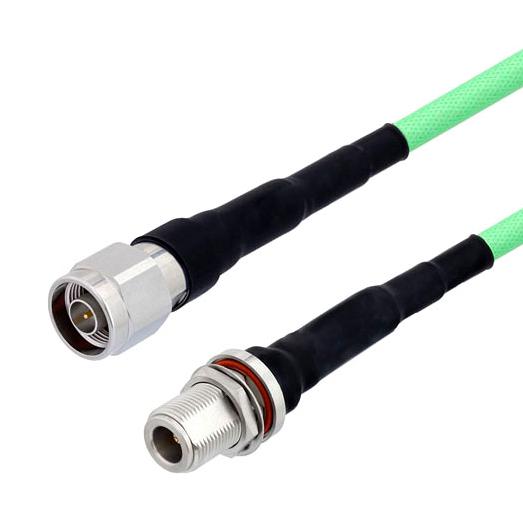

L-COM LCCA30042FT3 RF Cable Assembly
L-com’s low loss N male to N female bulkhead cable assembly features a heavy-duty heat shrink boot, operating up to 18 GHz with LL335i coax. It utilizes a tape wrapped PTFE dielectric with 83% VoP, ensuring minimal insertion loss and superior flexibility for applications like automated test systems, laboratory, and antenna ranges. The triple shielding with silver plated copper layers provides over 95dB shielding effectiveness. Constructed with stainless steel connectors, this 3-foot cable offers durability and precision connection for rack and panel mounts, ideal for high-frequency, RF, and communication setups.
L-COM LCCA30042FT3 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.26 dB at 18 GHz
- Impedance: 50 Ohms
- Outer Diameter: 0.3 in (7.62 mm)
- Length: 3 ft (914.4 mm)
- Weight: 0.169 lbs (76.66 g)
- Cable Type: LL335i coaxial cable
- Connector 1: N Male bulkhead
- Connector 2: N Female bulkhead
- Connector Material: Beryllium Copper, Gold over Nickel
- Body Material: Passivated Stainless Steel
- Dielectric: Tape wrapped PTFE with 83% VoP
- Shielding: Triple layer – silver plated copper braid, tape, aluminum polyester
- Jacket Material: FEP Green
- Operating Temperature Range: -55°C to +200°C
- Bend Radius: 1.5 in (38.1 mm)
Buy the INFINITG LCCA30042 – Reliable RF Cable Assembly for Industrial Applications
Experience unmatched reliability with the INFINITG LCCA30042 RF cable assembly, featuring high-quality LL335i coax, triple shielding, and heavy-duty booting. Perfect for high-frequency applications up to 18 GHz, this 3-foot cable is ideal for automated test systems, antenna range setups, and laboratory environments. Its durable stainless steel connectors ensure long-lasting performance, while the flexible design allows for easy installation in tight spaces. Order online today and enhance your RF system's performance with our premium, precision-engineered cable assembly, shipped same day for your convenience.
Buy INFINITG LCCA30042 cable assembly now and ensure repeatable, high-frequency connections suitable for demanding RF and communication projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30042FT3?
You can click on the BUY or RFQ button to purchase LCCA30042FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30042FT3?
You can download the LCCA30042FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30042FT3?
L-COM
