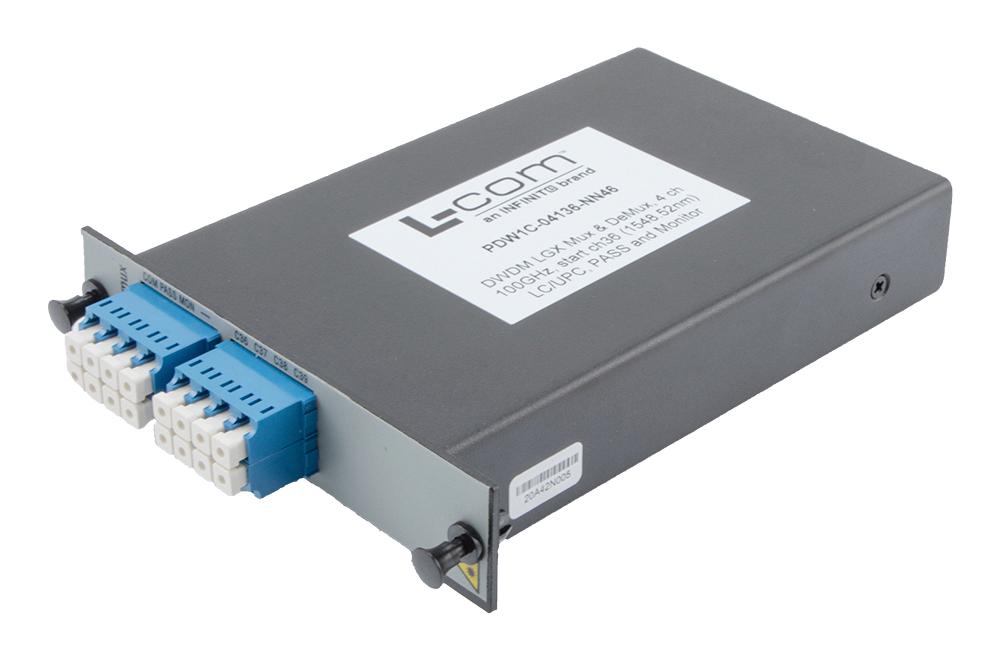

L-COM PDW1C04136NN46 DWDM Filter Module
This DWDM passive filter module features four channels starting from channel 36 at 1548.52 nm with 100 GHz spacing, suitable for single-mode fiber networks. Equipped with LC/UPC connectors, it includes monitor port options for performance tracking on both mux and demux units. The express channel feature permits passing channels not supported by the filter, allowing system upgrades. Designed as a dual fiber filter, it enables muxing and demuxing of signals for metro transport and inside plant applications, ensuring high performance and reliability in optical communication networks.
L-COM PDW1C04136NN46 DWDM Filter Module Specifications:
- Number of Channels: 4
- Filter Type: DWDM
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength: 1546.12 to 1548.52 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Connector Type: LC/UPC
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the Buy InfinetG DWDM Filter Part Number PDW1C04136NN46 Online
Order the InfinetG DWDM Filter Module today online to enhance your fiber optic network with four high-performance channels starting from channel 36 at 1548.52 nm. This module offers 100 GHz spacing, LC/UPC connectors, and monitor ports for optimal system monitoring. Its express channel feature allows passing unsupported channels for future upgrades. Designed for dual fiber applications, it’s perfect for metro networks and inside plant setups, providing superior reliability and seamless integration for your optical communication needs.
Buy InfinetG PDW1C04136NN46 now and experience unmatched reliability and performance in high-capacity optical networks.
Frequently Asked Questions
Where can I buy L-COM PDW1C04136NN46?
You can click on the BUY or RFQ button to purchase PDW1C04136NN46 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PDW1C04136NN46?
You can download the PDW1C04136NN46 datasheet or visit the L-COM website for support.
Who is the manufacturer of PDW1C04136NN46?
L-COM
