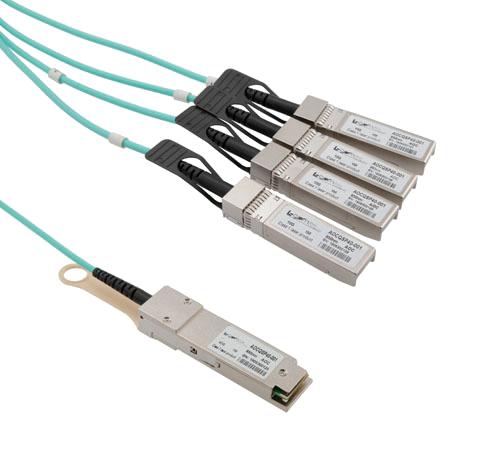

L-COM AOCQSP40001 Active Optical Breakout Cable
The AOCQSP40-001 is an active optical breakout cable supporting 40Gbps Ethernet links, compatible with MSA standards and featuring high reliability 850nm VCSEL technology. It connects a QSFP+ transceiver to four SFP+ modules, enabling aggregation of multiple 10Gbps channels into a single 40Gbps link with lengths of up to 30 meters. Designed for data center intra-rack and inter-rack communication, HPC, Infiniband, and Fibre Channel applications, it ensures low power dissipation below 1.5W per QSFP+ end and is operating within 0°C to 70°C temperature range.
L-COM AOCQSP40001 Active Optical Breakout Cable Specifications:
- Form Factor: QSFP+
- Maximum Data Rate: 42.0 Gb/s
- Data Rate per Lane: 10.5 Gb/s
- Cable Lengths Supported: 1m, 3m, 5m, 7m, 10m, 50m, 100m (other lengths upon request)
- Protocols Supported: 40G Ethernet, Infiniband, Fibre Channel, 10G Ethernet
- Electrical Interface: Compliant with SFF8436 (QSFP+) and SFF-8431 (SFP+)
- Optical Cable Type: Multimode ribbon fiber, riser-rated
- Maximum Power Dissipation: <1.5W per QSFP+ end
- Operating Temperature Range: 0°C to 70°C
- Storage Temperature Range: -40°C to 85°C
- Relative Humidity: 5% to 95%
- Connector Pinout: Based on QSFP+ and SFP+ standards, with serial 2-wire interface
- Mechanical Length: 100 cm (39.37 in)
- Certification: RoHS compliant
Buy the Buy INFINITG Active Optical Cable Breakout Part Number AOCQSP40-001 Online
Order the INFINITG Active Optical Breakout Cable supporting 40Gbps Ethernet and compatible with MSA standards today. Designed for data centers, it aggregates four 10Gbps channels into a single 40Gbps link, with lengths up to 30 meters. Its rugged multimode ribbon fiber ensures high reliability, low power consumption below 1.5W per end, and operation within 0°C to 70°C. Perfect for intra-rack or inter-rack connections, HPC, Infiniband, and Fibre Channel applications, this cable delivers optimal performance and ease of integration.
Buy INFINITG AOCQSP40-001 now and experience high-speed data transmission with reliable 40Gbps connectivity for data centers and HPC networks.
