L-COM LCCA30011FT3 SMA coaxial cable
The Low Loss SMA Male to SMA Male Cable Assembly with Heavy Duty Heat Shrink Boot uses LL142 coax for minimal signal loss up to 18 GHz. This 3-foot flexible cable features triple shielding with silver-plated copper braid, tape wrapped PTFE dielectric, and durable stainless-steel connectors. Suitable for automated testing, laboratory, antenna range, and long cable runs, it provides high shielding effectiveness over 95dB, low insertion loss, and a maximum VSWR of 1.35:1, ensuring reliable performance in demanding RF applications.
L-COM LCCA30011FT3 SMA coaxial cable Specifications:
- Frequency Range: Up to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.35:1
- Insertion Loss: Max 0.35 dB at 1 GHz, 1.48 dB at 18 GHz
- Shielding Effectiveness: > 95dB
- Cable Type: LL142 coax
- Dielectric: Tape wrapped PTFE with VoP 80%
- Outer Diameter: 0.195 inches (4.95 mm)
- Length: 3 ft (914.4 mm)
- Inner Conductor: Solid copper, Gold over Nickel plating
- Shield Layers: Silver-plated copper braid, tape shield
- Jacket Material: FEP, Green color
- Maximum Bend Radius: 0.975 inches (24.77 mm)
- Operating Temperature: -55°C to +200°C
- Connectors: SMA Male, gold-plated beryllium copper, passivated stainless steel body
- Connector Torque: 10 in-lbs (1.13 Nm)

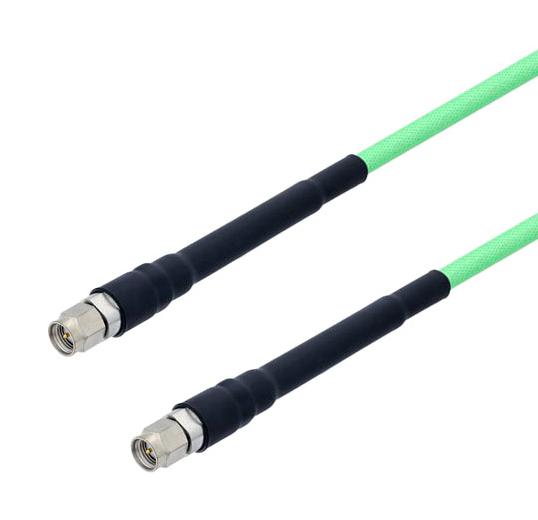

Buy the Buy INFINITG SMA Male to SMA Male Cable Part Number LCCA30011-FT3 Online
Experience superior RF performance with the INFINITG SMA coaxial cable assembly. Designed for flexible applications, this low loss, 3-foot SMA male to SMA male cable features triple shielding for excellent signal integrity up to 18 GHz. Its durable stainless-steel connectors and heavy-duty heat shrink boot ensure long-lasting, reliable connections in testing, laboratory, and antenna range environments. Purchase online today and benefit from fast shipping, custom options, and trusted quality to meet your project’s demanding RF requirements.
Order your INFINITG SeriesLCCA30011-FT3 low loss SMA cable today and ensure high-quality, reliable RF connections for your testing and antenna needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30011FT3?
You can click on the BUY or RFQ button to purchase LCCA30011FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30011FT3?
You can download the LCCA30011FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30011FT3?
L-COM
