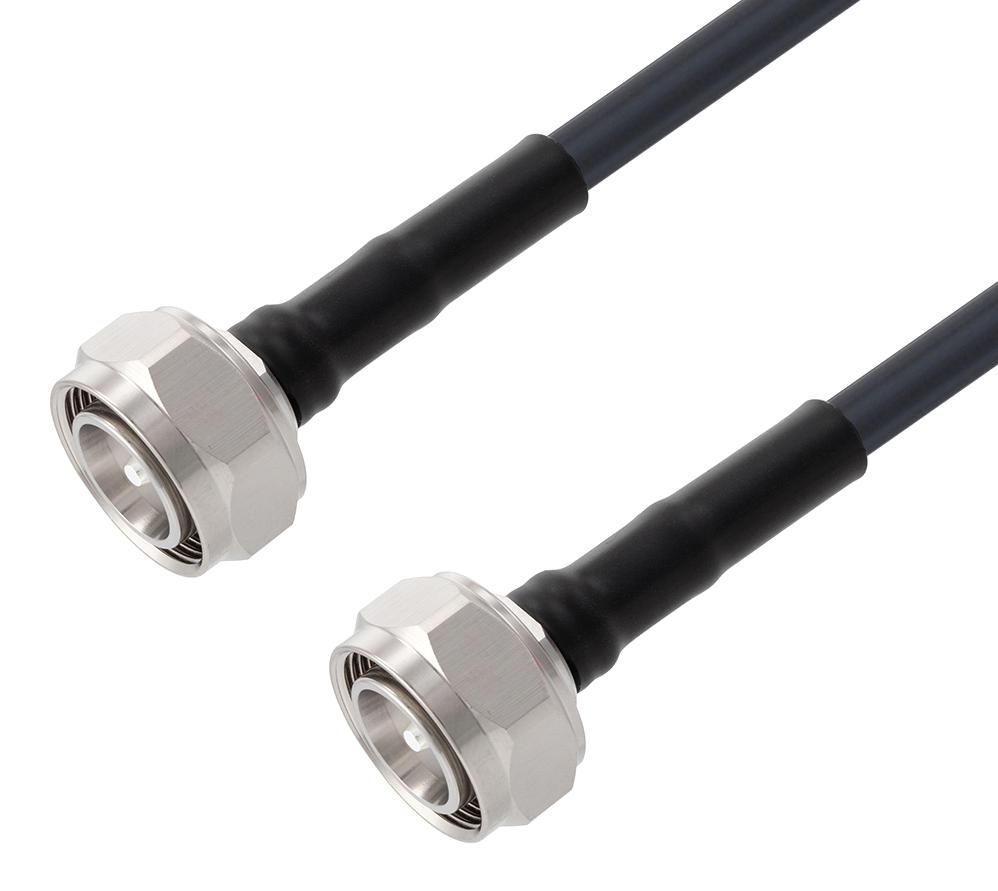

L-COM LCCA30171FT10 RF Cable Assembly
The LCCA30171-FT10 is a high-performance, low-loss 4.3-10 male to male coaxial cable assembly, using high-quality LMR-240 coax with Times Microwave components. With a length of 10 feet, it features a PE jacket, double shielding for superior RF interference protection, and operates efficiently up to 5.8 GHz. Ideal for radio, cellular, Wi-Fi, antenna installations, and general communication systems, this flexible RF cable assembly offers excellent shielding (>90 dB), low insertion loss, and robust construction for reliable signal transmission in demanding environments.
L-COM LCCA30171FT10 RF Cable Assembly Specifications:
- Frequency Range: 0.25 to 5.8 GHz
- Impedance: 50 Ohms
- Connector Type: 4.3-10 Male to 4.3-10 Male
- Cable Type: LMR-240 coax with PE jacket
- Length: 10 feet (304.8 cm)
- Shielding Effectiveness: >90 dB
- Velocity of Propagation: 84%
- Maximum Insertion Loss: 2.24 dB at 5.8 GHz
- VSWR: 1.41
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 3.2 Ohms/1000 ft
- Outer Conductor Resistance: 3.89 Ohms/1000 ft
- Jacket Voltage: 5,000 Vrms
- Minimum Bend Radius: 2.5 inches
- Operating Temperature: -40°C to +85°C
- Connector Body Material: Brass, Silver plated
- Connector Plating: Silver
- Dielectric: PTFE
- Durability: 500 mating cycles
Buy the INFINITG Series RF Cable: LCCA30171 Low Loss 4.3-10 Male to Male 10 FT
Capture superior signal quality with our INFINITG Series RF Cable Assembly featuring LMR-240 coax. This 10-foot low-loss, high-shielding cable with 4.3-10 male connectors is perfect for cellular, Wi-Fi, antenna, and land mobile radio systems. Its flexible design allows easy installation even in tight spaces, while the durable construction withstands demanding environments. Enjoy excellent shielding, minimal signal loss, and consistent performance. Purchase online now for fast shipping and reliable connectivity in your critical communication setups.
Order your INFINITG Series LCCA30171 10 FT low loss RF cable assembly today and ensure reliable, high-frequency signal transmission for your wireless and communications projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30171FT10?
You can click on the BUY or RFQ button to purchase LCCA30171FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30171FT10?
You can download the LCCA30171FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30171FT10?
L-COM
