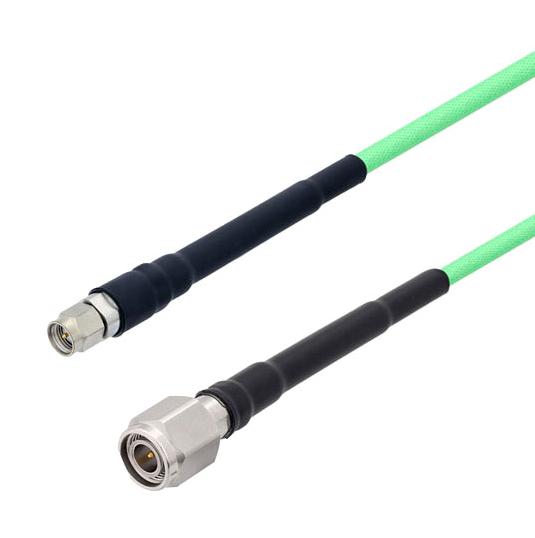

L-COM LCCA30014FT1 RF Cable Assembly
L-com’s LCCA30014-FT1 is a low loss SMA male to TNC male cable assembly with heavy duty heat shrink boot using LL142 coax, 1 FT and ships same-day. It features tape wrapped PTFE dielectric with 80% VoP, providing very low insertion loss and excellent flexibility for applications requiring frequent bending. With a maximum frequency of 18 GHz, triple shielding > 95dB, and durable stainless-steel connectors, this versatile RF cable is ideal for automated test systems, laboratory use, antenna range applications, and long cable runs, ensuring reliable high-frequency performance.
L-COM LCCA30014FT1 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max. 0.18 dB at 18 GHz
- VSWR: 1.35:1 at 18 GHz
- Shielding Effectiveness: > 95dB
- Dielectric: Tape wrapped PTFE with VoP of 80%
- Outer Shield: Silver plated copper braid over tape
- Center Conductor: Solid copper with silver plating
- Jacket Material: FEP, Green
- Cable Diameter: 0.195 inches (4.95 mm)
- Cable Length: 1 FT (can be customized)
- Maximum Weight: 0.037 lbs (16.78 g)
- Repeated Minimum Bend Radius: 0.975 inches (24.77 mm)
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS – Reliable SMA TNC Cable for Industrial Applications
Get your Cor GLOBAL CONNECTIVITY SOLUTIONS low loss SMA to TNC cable assembly now available with same-day shipping. Perfect for RF testing, laboratory, and antenna range applications, this 1 FT rugged cable features triple shielding for excellent interference protection, operates up to 18 GHz, and includes a heavy-duty heat shrink boot for durability. Its flexible LL142 coax with tape wrapped PTFE dielectric ensures minimal insertion loss and maximum performance, making it an ideal choice for professional RF interconnect needs in industrial and research environments.
Order your Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30014-FT1 SMA to TNC cable today and ensure high-performance, low loss connections for demanding RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30014FT1?
You can click on the BUY or RFQ button to purchase LCCA30014FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30014FT1?
You can download the LCCA30014FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30014FT1?
L-COM
