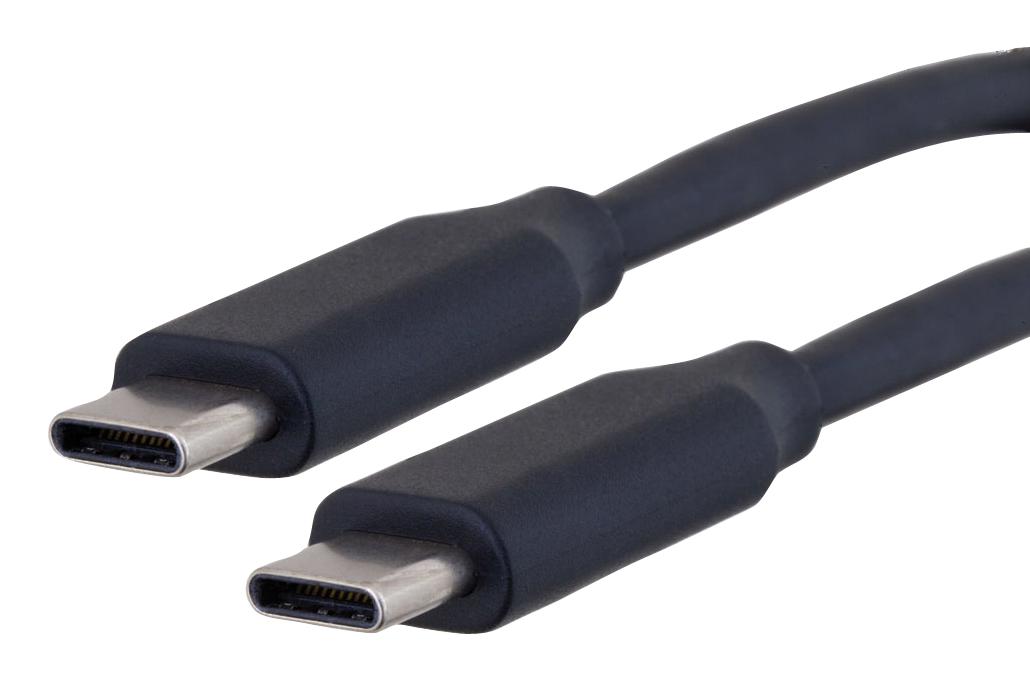

L-COM U1A0000203M USB Type-C Cable
This USB 3.1 Type-C plug features a gold-plated contact surface and nickel-plated shell, ensuring reliable connectivity and corrosion resistance. The cable assembly is constructed with 32 AWG and 23 AWG conductors, housed in a black PVC jacket with 85% braid shielding for superior electromagnetic interference protection. It measures 0.3 meters (98 feet), 0.5 meters (1.64 feet), or 1 meter (3.28 feet), and complies with RoHS and UL standards for safety and environmental friendliness. Designed for high-speed data transfer, it supports up to 10Gbps and is suitable for various electronic devices.
L-COM U1A0000203M USB Type-C Cable Specifications:
- Connector: USB 3.1 Type-C plug
- Contact Material: Gold-plated
- Shell Material: Nickel-plated
- Conductors: 32 AWG and 23 AWG cables
- Jacket: PVC, black color
- Shielding: 85% braid shield
- Cable Lengths: 0.3 meters, 0.5 meters, 1 meter
- Diameter: 4.8 mm
- Electrical Testing: 100% open/short/miss wire test, Hi-Pot 100V AC/0.1s, insulation resistance min 10MΩ at 100V DC, conductor resistance max 3Ω
- Standards: RoHS, UL Listed, CE 2011/45/EU
- Application: High-speed data transfer up to 10Gbps, suitable for electronic device connections
Buy the Buy USB 3.1 Type-C Part Number U1A0000203M Online
Order the USB Type-C cable U1A0000203M online today and enjoy fast, reliable data transfer up to 10Gbps. This premium cable features gold-plated contacts and a nickel-plated shell, ensuring maximum corrosion resistance and durability. Available in multiple lengths, it is ideal for connecting laptops, smartphones, tablets, and other electronic devices. With RoHS and UL compliance, it guarantees safe, environmentally friendly operation. Enhance your connectivity with a high-quality, high-speed USB Type-C cable designed for demanding professional and personal use.
Get USB 3.1 Type-C cable U1A0000203M today—built for high-speed data transfer and long-lasting durability.
Frequently Asked Questions
Where can I buy L-COM U1A0000203M?
You can click on the BUY or RFQ button to purchase U1A0000203M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U1A0000203M?
You can download the U1A0000203M datasheet or visit the L-COM website for support.
Who is the manufacturer of U1A0000203M?
L-COM
