L-COM LCCA30194FT4 RF Cable Assembly
L-com's LCCA30194-FT4 is a 4-foot low loss N male to N female bulkhead cable assembly using LMR-400 coax, featuring Times Microwave components and a PE jacket. It operates up to 5.8 GHz with very low insertion loss and over 90 dB shielding effectiveness due to double shielding with tinned copper braid and aluminum tape. Designed for RF applications including antenna installations, land mobile radio, Wi-Fi, and laboratory use, it offers a bend radius of 4 inches and excellent electrical performance for reliable connectivity in communication systems.
L-COM LCCA30194FT4 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 85%
- Insertion Loss: 0.28 dB at 0.25 GHz, 0.36 dB at 0.58 GHz
- Shielding Effectiveness: > 90 dB
- Impedance: 50 Ohms
- Jacket Material: PE, black
- Cable Type: LMR-400 coaxial cable
- Inner Conductor: Copper Clad Aluminum, gold-plated
- Dielectric: PE (F)
- Number of Shields: 2 (aluminum tape and braided copper)
- Shield Layer 1: Aluminum tape
- Shield Layer 2: Tinned copper braid
- Outer Diameter: 0.875 inches (22.23 mm)
- Length: 4 feet
- Weight: 0.2 lbs (90.72 g)
- Operating Temperature Range: -40°C to +85°C
- Storage Range: -70°C to +85°C
- Bend Radius: 4 inches
- Max Mechanical Flexure: 1 inch minimum bend radius, repeated 40 Ibs/in
- Connector Type: N male to N female bulkhead
- Connector Material: Brass, gold plated
- Connector Torque: 18.417 ft-lbs (24.97 Nm)

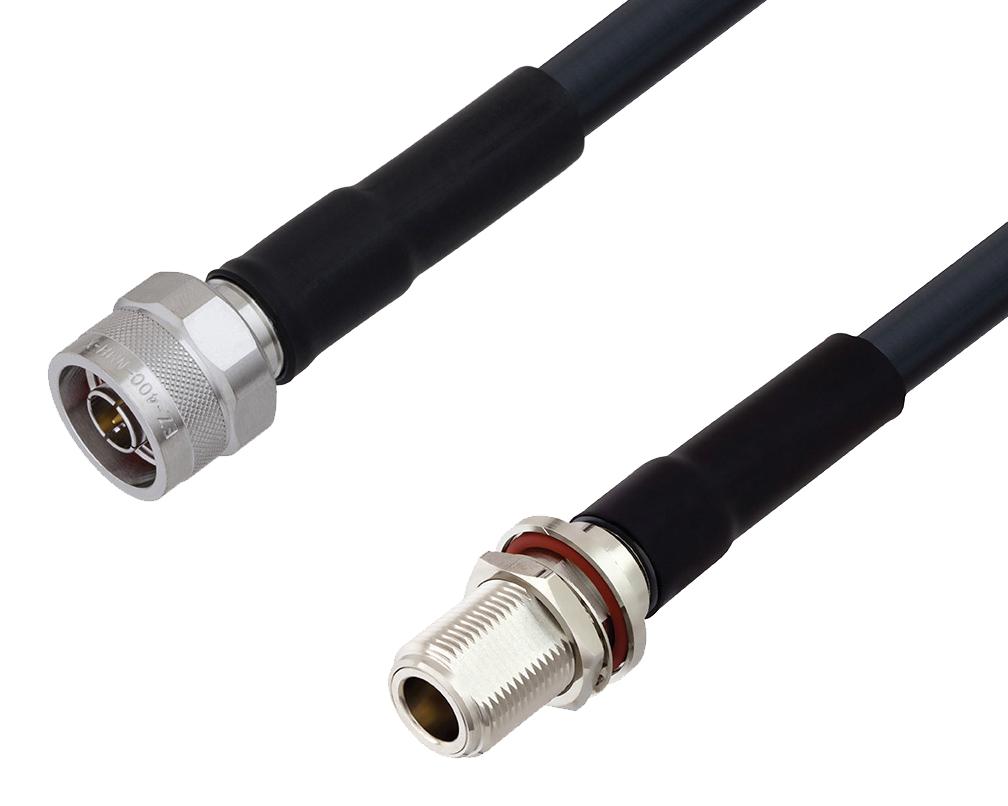

Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT4 – Reliable RF Cable Assemblies for Industrial Applications
Order the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT4 RF cable assembly online today to ensure your communication projects benefit from low loss, high shielding, and durable construction. With a 4-foot length, this N male to N female bulkhead connector is ideal for antenna, Wi-Fi, cellular, and land mobile radio applications. Enjoy fast same-day shipping, custom options, and professional testing to meet your specific connectivity needs for reliable industrial communication systems and laboratory setups.
Buy Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT4 now and experience unmatched reliability and performance in high-frequency RF communication systems.
