L-COM LCCA30024FT3 RF Cable Assembly
The L-com LCCA30024-FT3 is a high-performance low loss TNC male to TNC female bulkhead cable assembly. Featuring LL142 coax with tape-wrapped PTFE dielectric, it operates up to 18 GHz with an exceptional shielding effectivity over 95dB owing to triple shielding. Its durable stainless-steel connectors and heavy-duty heat shrink boot ensure long-term reliability in demanding environments. Ideal for automated test systems, laboratory, antenna ranges, and long cable runs, this flexible RF cable provides low insertion loss and excellent RF shielding, suitable for various high-frequency applications requiring dependable external connections or panel mounts.
L-COM LCCA30024FT3 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss (Max): 0.37 dB at 18 GHz
- Shielding Effectiveness: Greater than 95dB
- Dielectric: Tape wrapped PTFE with 80% VoP
- Inner Conductor Material: Copper, Silver Plated
- Connector Type: TNC Male to TNC Female Bulkhead
- Connector Material: Beryllium Copper with Gold over Nickel plating
- Jacket Material: FEP, Green
- Cable Length: 3 feet
- Cable Diameter: 0.195 inches
- Temperature Range: -55°C to +200°C
- Weight: 0.127 lbs
- Outer Shield Layers: Silver Plated Copper Tape and Aluminum Polyester
- Overall Outer Jacket: FEP heat shrink with heavy-duty boot
- Bend Radius: Minimum 0.975 inches
- Max Frequency: 18 GHz

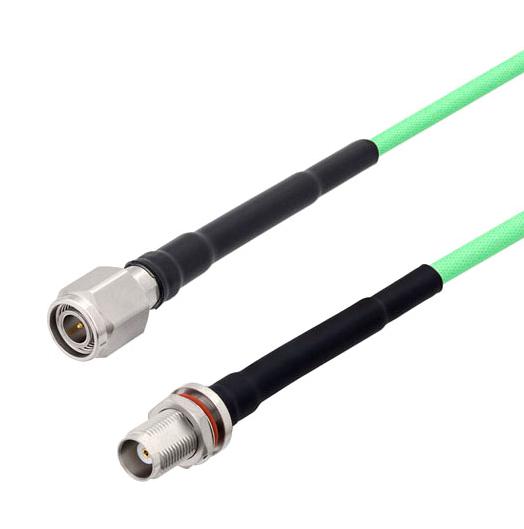

Buy the Buy INFINITG TNC Male to TNC Female Part Number LCCA30024-FT3 Online
Order the INFINITG LCCA30024-FT3 low loss TNC male to TNC female bulkhead cable online today. This 3 ft flexible RF cable features LL142 coax with tape-wrapped PTFE dielectric, supporting frequencies up to 18 GHz. It offers shielding effectiveness over 95dB with triple shielding, ensuring minimal signal loss. Perfect for automated test systems, antenna ranges, and long cable runs, its heavy-duty heat shrink boot and stainless-steel connectors provide durability. Reliable and easy to install, this cable ensures excellent RF performance in demanding environments.
Get INFINITG LCCA30024-FT3 today—built for high-frequency reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy L-COM LCCA30024FT3?
You can click on the BUY or RFQ button to purchase LCCA30024FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30024FT3?
You can download the LCCA30024FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30024FT3?
L-COM
