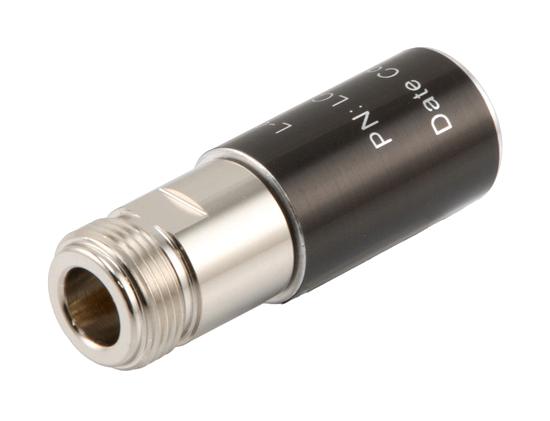

L-COM LCTR1011 RF Load
The LCTR1011 is a high-performance RF load operating from DC to 18 GHz, capable of handling up to 2 Watts of continuous power. Designed with a durable construction, it features an N female connector, gold-plated BeUllium copper contacts, and brass outer conductors with nickel plating for reliable signal absorption. Its compact size (2.08 inches long) and lightweight (approximately 0.011 lbs) make it ideal for RF and microwave systems, including signal testing, measurement, and system termination applications. It ensures minimal reflection with a VSWR less than 1.30:1, offering excellent reliability in demanding environments from -55°C to 85°C.
L-COM LCTR1011 RF Load Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- VSWR: <1.30:1
- Input Power (CW): 2 Watts, derated to 0.5W @ +125°C
- Input Power (Peak): 500 Watts with 5us pulse and 0.4% duty cycle
- Connector: N Female
- Size: Length 2.08 in (52.83 mm), Width 0.787 in (19.99 mm)
- Weight: 0.011 lbs (4.99 g)
- Materials: Contact - Beryllium Copper Gold, Outer Conductor - Brass Nickel, Body - Brass Nickel, Housing - Aluminum Nickel
- Operating Temperature Range: -55°C to +85°C
Buy the Buy Infinite Electronics RF Load Part Number LCTR1011 Online
Order the Infinite Electronics RF Load LCTR1011 today for high frequency applications up to 18 GHz. Designed with durable materials, this 2 Watt dummy load features an N female connector, ensures minimal signal reflection with VSWR less than 1.30:1, and is suitable for RF testing, measurement, and system termination. Its compact size (2.08 inches long) and lightweight construction make it perfect for both laboratory and field use, operating reliably in temperatures from -55°C to 85°C, ensuring versatile and lasting performance.
Get Infinite Electronics LCTR1011 today—built for high power handling up to 2 Watts and reliable performance up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCTR1011?
You can click on the BUY or RFQ button to purchase LCTR1011 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCTR1011?
You can download the LCTR1011 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCTR1011?
L-COM
