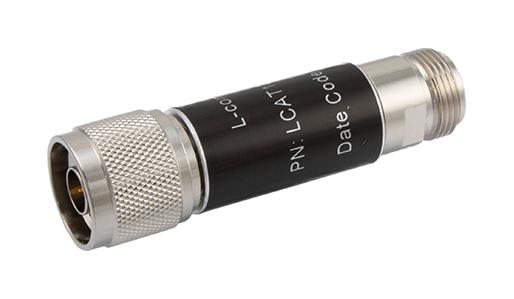

L-COM LCAT100308 RF Attenuator
The 2W/8dB RF Fixed Attenuator features N male to N female connectors with Brass nickel body, operating up to 3 GHz. It is rated at 2 Watts CW power and ideal for RF testing, instrumentation, and signal impedance matching. Its compact design measures approximately 70 mm in length with a diameter of 20 mm, making it suitable for precise attenuation needs. Built with durable materials, this attenuator ensures minimal signal loss, excellent VSWR of 1.2, and reliable performance in rigorous environments, supporting high-frequency applications up to 3 GHz.
L-COM LCAT100308 RF Attenuator Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC to 3 GHz
- Nominal Attenuation: 8 dB
- Attenuation Accuracy: ±0.4 dB
- VSWR: 1.2:1
- Input Power, CW: 2 Watts
- Peak Power: 500 Watts with pulse, 0.5% duty cycle
- Size: Length 70 mm, Diameter 20 mm
- Weight: 69.99 gram
- Connectors: N Male to N Female
- Body Material: Brass, Nickel plated
- Operating Temperature: -55°C to +125°C
Buy the Buy INFINITG RF Fixed Attenuator Part Number LCAT1003-08 Online
Purchase the INFINITG RF Fixed Attenuator LCAT1003-08 online today to benefit from high-quality signal attenuation up to 3 GHz, 2W power rating, and durable brass nickel construction. Perfect for RF test systems, instrumentation, and impedance matching, this reliable attenuator reduces signal overload and ensures accurate measurements. Its compact size and robust design make it suitable for various professional applications, supporting high-frequency performance and excellent VSWR of 1.2. Order now for fast shipment and seamless integration into your RF setup.
Get INFINITG RF Fixed Attenuator LCAT1003-08 today—designed for precise signal attenuation up to 3 GHz and built for durability in RF measurement applications.
Frequently Asked Questions
Where can I buy L-COM LCAT100308?
You can click on the BUY or RFQ button to purchase LCAT100308 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100308?
You can download the LCAT100308 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100308?
L-COM
