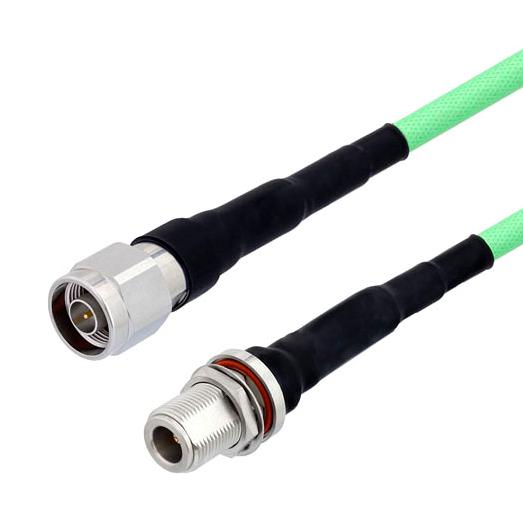

L-COM LCCA30042FT1 RF Cable Assembly
The LCCA30042-FT1 is a high-performance, low loss N male to N female bulkhead cable assembly designed for precise RF signal transmission up to 18 GHz. Utilizing LL335i coax with a tape-wrapped PTFE dielectric that offers an VoP of 83%, it provides minimal insertion loss and excellent shielding effectiveness greater than 95dB thanks to triple shielding with silver-plated copper tape and braid. Equipped with a heavy-duty heat shrink boot and stainless-steel connectors, it is ideal for automated test systems, antenna ranges, laboratory applications, and long cable runs requiring flexibility and durability.
L-COM LCCA30042FT1 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max. 0.14 dB at 18 GHz
- Shielding Effectiveness: > 95dB
- Impedance: 50 Ohms
- Connector Type: N Male and N Female Bulkhead
- Cable Type: LL335i coax with tape wrapped PTFE dielectric
- Dielectric: PTFE with VoP of 83%
- Inner Conductor: Copper, Silver-plated
- Outer Shield Layers: Silver-plated copper tape and braid
- Jacket Material: FEP (Green)
- Cable Diameter: 0.3 in (7.62 mm)
- Length: 1 FT
- Weight: 0.079 lbs (35.83 g)
- Maximum Repeated Bending Radius: 1.5 in (38.1 mm)
- Operating Temperature Range: -55°C to +200°C
- Connector Material: Beryllium Copper, Gold over Nickel
- Connector Plating: Gold
- Body Material: Passivated Stainless Steel
- Hex Size: 3/4 inch
- Torque: 21 in-lbs (2.37 Nm)
- Seal Gasket: Silicone Rubber
- Boot Material: Heavy Duty Heat Shrink
Buy the Infinitg Series RF Cable: LCCA30042-FT1
Order the Infinitg series RF cable assembly LCCA30042-FT1 online today for reliable RF signal transmission up to 18 GHz. Featuring low insertion loss, triple shielding for superior noise immunity, heavy-duty heat shrink boot, and durable stainless-steel connectors, this cable is perfect for automated test systems, antenna ranges, laboratory experiments, and long flexible cable runs. Enjoy same-day shipping and expert support to ensure your RF application needs are met with top-quality, high-performance cables designed for longevity and precision.
Buy Infinitg series RF cable assembly LCCA30042-FT1 now and experience unmatched reliability and high-frequency performance up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCCA30042FT1?
You can click on the BUY or RFQ button to purchase LCCA30042FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30042FT1?
You can download the LCCA30042FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30042FT1?
L-COM
