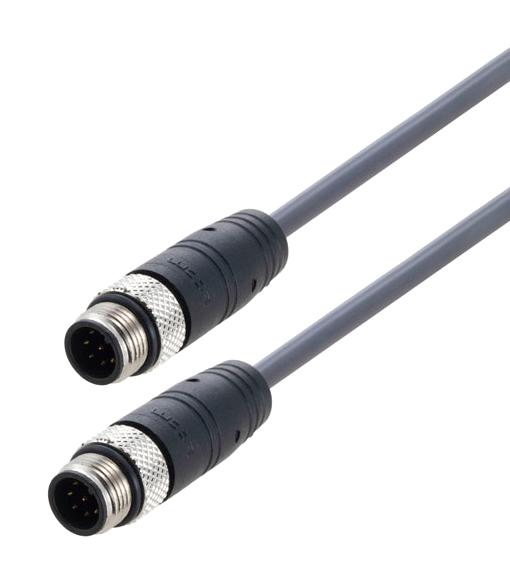

L-COM TRG882C6G5M Shielded M12 Cable
The product is a shielded cable assembly with a PVC jacket rated IP67, designed for reliable electrical connections in industrial environments. It features 8 positions with M12.0X1.0 shielded male connectors, made of brass with nickel plating, and phosphor bronze contacts with a gold plating. Suitable for applications requiring up to 30 V AC/DC and 2 A current, it withstands temperatures from -25°C to +105°C. The cable contains 8 stranded 26 AWG tinned copper conductors with aluminum/polyester foil shielding, ensuring excellent moisture and sunlight resistance, making it ideal for telecom and automation uses.
L-COM TRG882C6G5M Shielded M12 Cable Specifications:
- Connector Type: Shielded M12 male
- Number of Positions: 8
- Material: PVC molded hood, UV resistant, UL94 V-0
- Shell/Screw Nut Material: Brass, Nickel plated
- Contact Material: Phosphor bronze with gold plating
- Voltage Rating: 30 V AC/DC
- Max Current: 2A
- Operating Temperature: -25°C to +105°C
- Cable Conductors: 8 x 26 AWG stranded tinned copper
- Shielding: Aluminum/polyester foil with drain wire
- Jacket Material: PVC, gray, flame rating VW-1
- Jacket Diameter: Approximately 0.205 inches (5.20 mm)
- Ingress Protection: IP67 when mated
- Cable Resistance: Sunlight and moisture resistant
- Environmental Ratings: Flame rated VW-1
- Application: Industrial automation, telecom, control systems
Buy the Buy L-COM Shielded M12 Part Number TRG882C6G5M Online
Purchase the L-COM shielded M12 connector cable TRG882C6G5M online for versatile industrial applications requiring IP67 protection and robust performance. This high-quality cable features 8 conductors of 26 AWG stranded tinned copper with aluminum/polyester foil shielding, ensuring excellent moisture and sunlight resistance. Suitable for automation, telecom, and control systems, it operates safely from -25°C to +105°C. With brass nickel-plated shells, gold-plated contacts, and a gray PVC jacket, this cable guarantees durability, flexibility, and high electrical performance in demanding environments.
Get L-COM shielded M12 connector cable TRG882C6G5M today—designed for reliable industrial and automation connections with IP67 protection.
