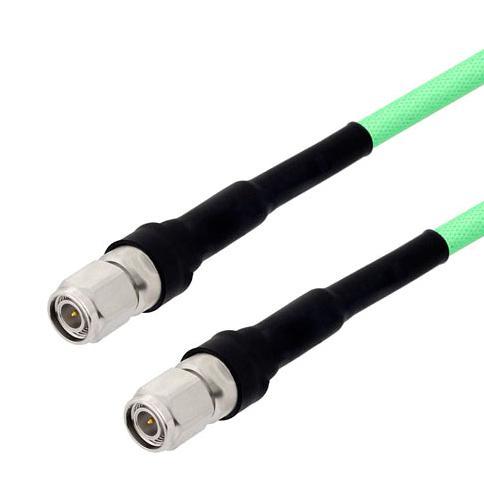

L-COM LCCA30044FT5 RF Cable Assembly
The low loss TNC male to TNC male cable assembly with a heavy-duty heat shrink boot and LL335i coax features excellent shielding over 95dB, operating up to 18 GHz, and is ideal for automated test systems, laboratory use, and long cable runs. Its flexible design includes triple shielding with silver-plated copper and aluminum polyester layers, a tape-wrapped PTFE dielectric with 83% VoP, and a durable FEP jacket. The assembly offers low insertion loss, reliable connectors, and a 5-foot length, suitable for various RF applications requiring high performance and durability.
L-COM LCCA30044FT5 RF Cable Assembly Specifications:
- Frequency Range: 0 to 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: > 95dB
- Capacitance: 25 pF/ft
- Length: 5 ft
- Diameter: 0.3 in
- Weight: 0.229 lbs
- Impedance: 50 Ohms
- Inner Conductor: Copper, Silver plated
- Dielectric: Tape wrapped PTFE
- Shielding Layers: Silver plated copper tape, aluminum polyester, silver plated copper braid
- Jacket Material: FEP, green
- Repeated Minimum Bend Radius: 1.5 in
- Connector Type: TNC Male to TNC Male
- Connector Material: Beryllium Copper, Gold over Nickel
- Connector Specification: MIL-STD-348
- Operating Temperature Range: -55°C to +200°C
- Heavy Duty Heat Shrink Boot for strain relief and durability.
- Maximum Insertion Loss: 0.38 dB at 1 GHz, 1.59 dB at 18 GHz
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30044-FT5 – Reliable RF Cable for Industrial Applications
Order the RF Cable Assembly today from trusted supplier and enjoy same-day shipping. Designed for durability and minimal loss, this assembly features a heavy-duty heat shrink boot, triple shielding, and operates up to 18 GHz. Perfect for automated testing, laboratory setups, and long-distance RF connections, it offers excellent shielding effectiveness, flexible design, and compatibility with high-frequency systems. Ensure your projects benefit from high performance and reliable connections with this premium RF cable assembly suitable for industrial, research, and technical applications.
Buy Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30044-FT5 now and experience unmatched reliability and performance for your RF testing and long cable runs.
Frequently Asked Questions
Where can I buy L-COM LCCA30044FT5?
You can click on the BUY or RFQ button to purchase LCCA30044FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30044FT5?
You can download the LCCA30044FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30044FT5?
L-COM
