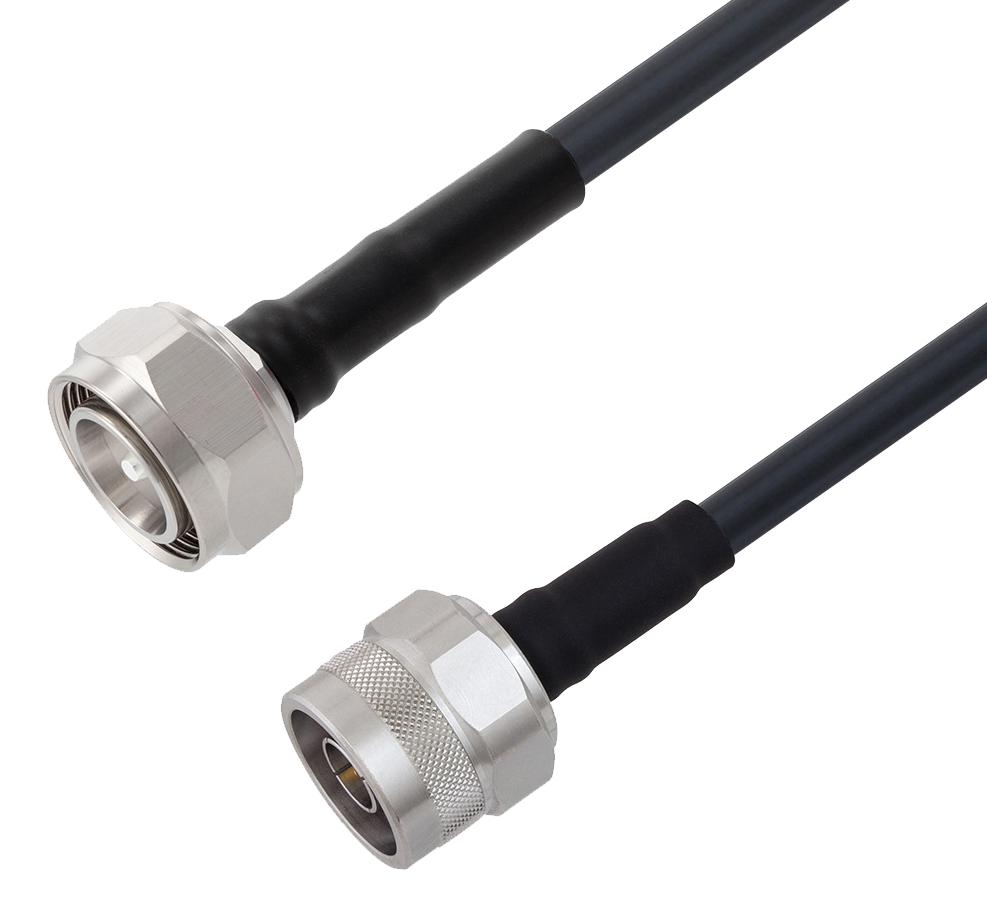

L-COM LCCA30265FT2 RF Cable Assembly
L-com’s LCCA30265-FT2 is a low loss 4.3-10 male to N male cable assembly using LMR-240 coaxial cable with Times Microwave components. It measures 2 feet in length and features a PE jacket, shielding > 90 dB, and operates up to 5.8 GHz. This flexible RF cable is suitable for general-purpose, radio, cellular, Wi-Fi, and antenna applications. Its double shield design provides excellent shielding effectiveness, low insertion loss, and high durability for demanding communication systems with flexible installation needs.
L-COM LCCA30265FT2 RF Cable Assembly Specifications:
- Connection Type: 4.3-10 Male to N Male
- Cable Type: LMR-240 coaxial cable
- Impedance: 50 Ohms
- Length: 2 ft
- Frequency Range: up to 5.8 GHz
- Insertion Loss: 0.27 dB at 0.25 GHz, to 0.45 dB at 1.25 GHz, 0.6 dB at 2.5 GHz, 0.35 dB at 5 GHz, 0.45 dB at 5.8 GHz
- Shielding Effectiveness: >90 dB
- Velocity of Propagation: 84%
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance: Inner conductor 3.2 Ohms/1000 ft, Outer conductor 3.89 Ohms/1000 ft
- Jacket Material: PE
- Jacket Diameter: 0.24 in
- Minimum Bend Radius: 2.5 inches
- Operating Temperature: -40°C to +85°C
- Mating Cycles: 500
- Connectors: Brass with silver or gold plating, PTFE dielectric, brass coupling nuts
Buy the INFINITG LCCA30265FT2 – Reliable RF Cable Assembly for Industrial Applications
Purchase the INFINITG LCCA30265FT2 RF cable assembly online today and enjoy same-day shipping. This 2 ft low loss coaxial cable features highly effective shielding, low insertion loss, and robust construction suitable for cellular, Wi-Fi, radio, and antenna applications. Its flexible design allows easy installation in tight spaces, providing reliable high-frequency performance up to 5.8 GHz. Perfect for both laboratory and field use, this assembly ensures your communication systems operate with optimal signal integrity, durability, and ease of integration.
Order your INFINITG Series LCCA30265FT2 RF cable assembly today and enhance your communication systems with flexible, high-quality coaxial connectivity.
Frequently Asked Questions
Where can I buy L-COM LCCA30265FT2?
You can click on the BUY or RFQ button to purchase LCCA30265FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30265FT2?
You can download the LCCA30265FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30265FT2?
L-COM
