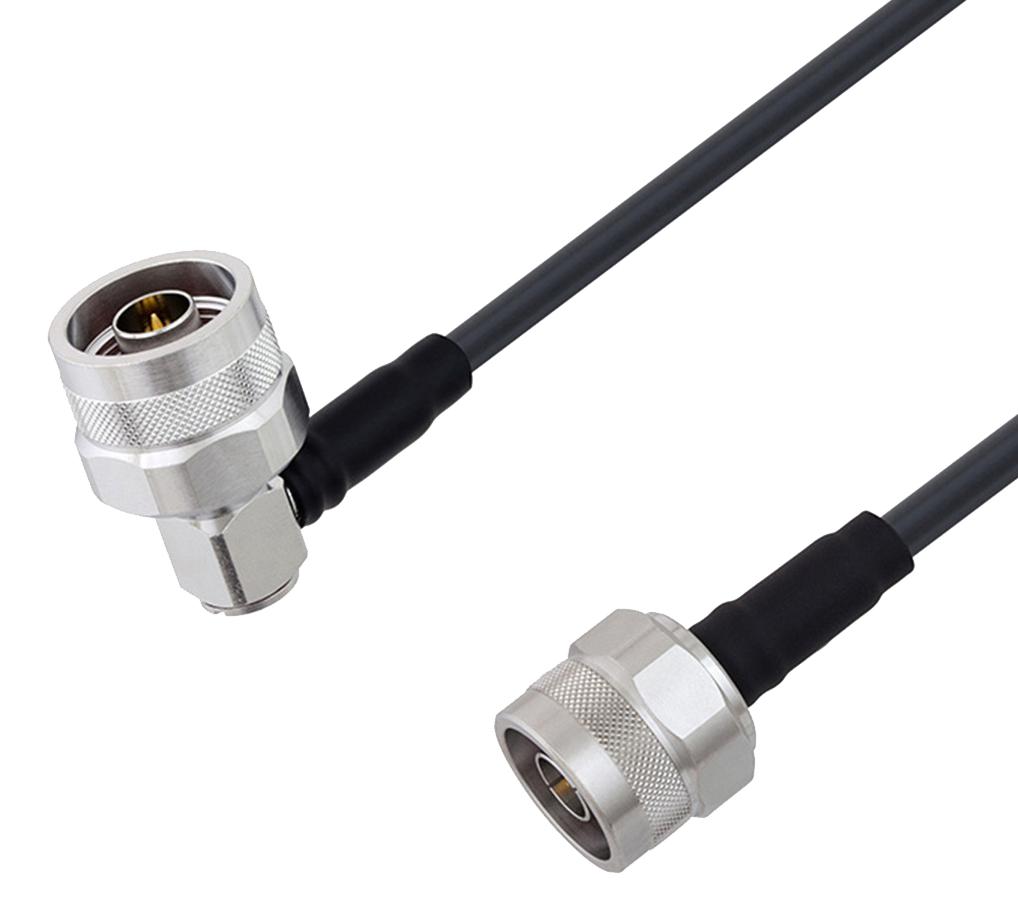

L-COM LCCA30154FT15 RF Cable Assembly
L-com’s LCCA30154-FT 1.5 is a low-loss N male right angle to N male cable assembly using LMR-195 coax, 1.5 feet long, featuring Times Microwave components. This flexible RF cable provides excellent shielding with a shielding effectivity greater than 90dB, operating up to 5.8 GHz with minimal insertion loss. The assembly's durable design includes a PE jacket, a bend radius of 2 inches, and double shielding for reliable performance in tight spaces. Ideal for cellular, Wi-Fi, antenna installations, and radio communication systems, with customizable options and same-day shipping.
L-COM LCCA30154FT15 RF Cable Assembly Specifications:
- Frequency Range: 0.25 to 58 GHz
- Impedance: 50 Ohms
- Insertion Loss (Typ.): 0.38 dB at 0.25 GHz, 0.58 dB at 25 GHz
- VSWR: 1.4:1 maximum
- Velocity of Propagation: 80%
- Shielding Effectiveness: >90 dB
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 µH/ft
- DC Resistance: 3,000 Ohms/1000 ft
- Cable Type: LMR-195
- Cable Diameter: 0.81 in (20.57 mm)
- Length: 1.5 ft
- Connector Type: N Male Right Angle to N Male
- Connectors Material: Brass with Gold Plating
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
- Minimum Bend Radius: 2 inches
- Mating Cycles: 500
- Body Material: Brass
- Jacket Material: PE (Black)
- Shield Layers: Aluminum Tape, Tinned Copper Braid
- Maximum Torque: 15 in-lbs (1.02 Nm)
Buy the Buy INFINITG N Male Right Angle to N Male Cable Assembly Part Number LCCA30154 Online
Purchase the INFINITG N Male Right Angle to N Male RF cable assembly utilizing LMR-195 coax from L-com today. This 1.5 feet long, low-loss RF cable features high shielding effectiveness over 90 dB, operates up to 5.8 GHz, and ensures maximum flexibility with a bend radius of 2 inches. Its durable construction includes a PE jacket, gold-plated connectors, and double shielding layers, making it ideal for cellular, Wi-Fi, antenna installations, and radio communication systems. Enjoy same-day shipping and customizable options for your project needs.
Order your INFINITG N Male Right Angle to N Male Cable Assembly LCCA30154 today and ensure reliable, high-quality connections for your communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30154FT15?
You can click on the BUY or RFQ button to purchase LCCA30154FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30154FT15?
You can download the LCCA30154FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30154FT15?
L-COM
