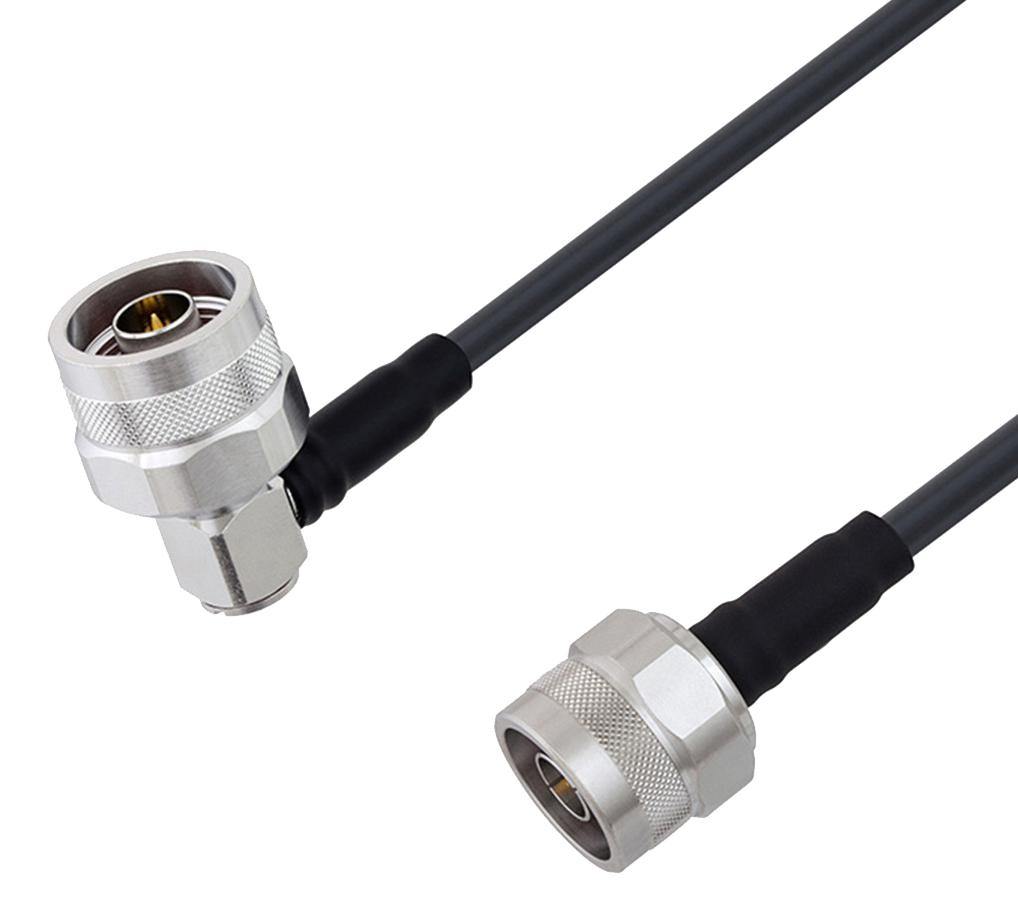

L-COM LCCA30154FT2 Coaxial Cable Assembly
L-com’s LCCA30154-FT2 is a 2-foot low-loss N male right angle to N male coaxial cable assembly using high-quality LMR-195 coaxial cable from Times Microwave. Designed for frequencies up to 5.8 GHz, it features a durable PE jacket, double shielding effect greater than 90 dB, and a flexible design ideal for tight spaces and applications like land mobile radio, cellular, Wi-Fi, and antenna installations. The assembly provides minimal insertion loss, excellent shielding, and reliable performance for communication systems and laboratory use, with connectors and cables engineered for longevity and signal integrity.
L-COM LCCA30154FT2 Coaxial Cable Assembly Specifications:
- Frequency Range: up to 5.8 GHz
- Impedance: 50 Ohms
- Maximum VSWR: 1.4:1
- Insertion Loss: 0.41 dB at 0.25 GHz, 0.46 dB at 0.5 GHz, 0.89 dB at 58 GHz
- Velocity of Propagation: 80%
- Shielding Effectiveness: > 90 dB
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 μH/ft
- DC Resistance Inner Conductor: 4.9 ohms/1000 ft
- Outer Conductor Resistance: 25.4 ohms/1000 ft
- Cable Length: 24 inches (2 ft)
- Cable Diameter: 0.81 inches (20.57 mm)
- Inner Conductor: Solid Copper, Gold Plated
- Dielectric: PE (Polyethylene)
- Shielding Layers: Aluminum Tape and Tinned Copper Braid
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 inches (4.95 mm)
- Minimum Bend Radius: 0.5 inches (12.7 mm)
- Repeated Bend Radius: 2 inches (50.8 mm)
- Connectors: N Male, right angle
- Connector Material: Brass, Gold Plated
- Connector Torque: 9 in-lb (1.02 Nm)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -70°C to +85°C
- Mating Cycles: 500
Buy the INFINITG Series LMR-195 Coaxial: LCCA30154FT2
Order the INFINITG LCCA30154FT2 2-foot coaxial cable assembly with N male right angle connectors today. Designed with LMR-195 coax for high-frequency applications, this flexible, low-loss cable offers superior shielding and minimal insertion loss up to 5.8 GHz. Ideal for antenna setups, cellular, Wi-Fi, and laboratory use, it ensures durable performance and easy installation in tight spaces. Trust this assembly for dependable, high-quality signal transmission with excellent shielding and minimal signal degradation for your communication systems.
Buy INFINITG LCCA30154FT2 now and experience unmatched reliability and performance in high-frequency communication systems with low insertion loss and robust shielding.
