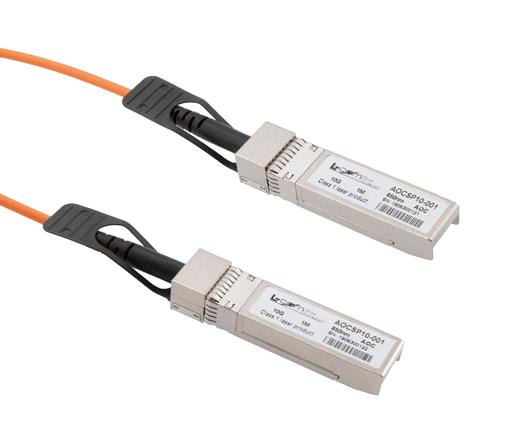

L-COM AOCSP10003 Active Optical Cable
The AOCSP10-001 is a high-performance active optical cable designed for 10 Gigabit Ethernet links, supporting data rates of up to 11.1Gbps and maximum link lengths of 100 meters. It features high reliability 850nm VCSEL technology, is electrically compliant with SFF-8431, and mechanically compliant with SFF-8432 standards. The cable is suitable for data center intra-rack and inter-rack applications, offering lower power consumption (<1.0W per end) and hot-pluggability, making it ideal for demanding network environments. Operation temperature range is 0°C to 70°C.
L-COM AOCSP10003 Active Optical Cable Specifications:
- Form Factor: SFP+
- Maximum Data Rate: 11.1Gbps
- Cable Lengths: 1 meter (standard), other lengths up to 300 meters available
- Maximum Link Length: 100 meters
- Fiber Type: Multimode ribbon fiber
- Power Consumption: <1.0W per cable end
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95%
- Electrical Interface: SFF-8431 compliant, 20-pin edge connector
- Connector Type: MSA-compatible SFP+ connector
- Input Voltage: 3.14V to 3.46V
- Input Current: Up to 300mA per end
- Operational Data Rate: 10.3125 Gbps
- RoHS Compliant
- Mechanical Length: 39.37 inches (100 cm)
- Cable Color: Orange
Buy the INFINITG AOCSP10-001 – Reliable 10Gbps Optical Cable for Industrial Applications
Purchase the INFINITG Active Optical Cable designed for 10 Gigabit Ethernet links, supporting lengths up to 100 meters. This robust, MSA-compatible cable ensures low power consumption and high reliability, ideal for data centers and industrial applications. Its high-quality multimode fiber and compliance with industry standards guarantee excellent performance. Lightweight and hot-pluggable, it simplifies installation. Secure your high-speed data transfer needs by ordering this durable, efficient optical cable online now—perfect for growing infrastructure and demanding environments.
Get INFINITG AOCSP10-001 today—built for precision, durability, and high-speed data transfer in industrial and data center environments.
Frequently Asked Questions
Where can I buy L-COM AOCSP10003?
You can click on the BUY or RFQ button to purchase AOCSP10003 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCSP10003?
You can download the AOCSP10003 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCSP10003?
L-COM
