L-COM U3A0008405M USB 3.0 Cable

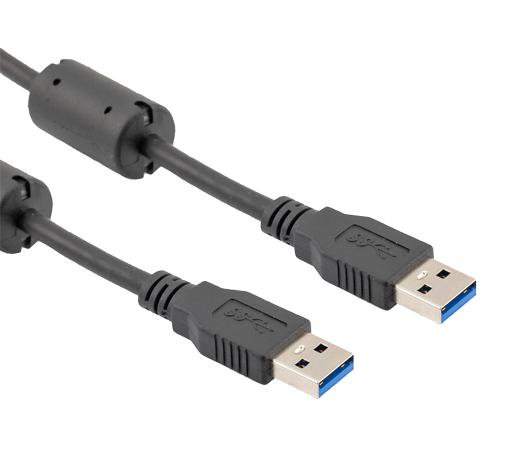

This USB 3.0 cable assembly features a black LSZH jacket with a length of 0.5 meters, offering high-speed data transfer supporting USB 3.0 standards. It includes a Type A plug with gold-plated contacts for optimal conductivity and corrosion resistance. The cable is constructed with twisted pairs of 30AWG wires, shielded with foil and drain wires for EMI protection, and incorporates ferrite beads at the ends to reduce noise. Compliant with UL style 21551 and RoHS directives, it ensures reliable performance for data-intensive applications and industrial connectivity.
L-COM U3A0008405M USB 3.0 Cable Specifications:
- Cable Length: 0.5 meters (1.64 feet)
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Wire Gauge: 30 AWG
- Conductors: Twisted Pair
- Shielding: Foil Shield with Drain Wire and Overall Braid Shield (65%)
- Connector: USB 3.0 Type A Plug with Gold Plating
- Voltage Rating: Compliant with USB 3.0 standards
- RoHS Compliance: Yes
- UL Style: 21551
- Ferrite Bead: Yes
- Temperature Rating: Typical operating conditions, details from datasheet
- Color: Black
- Overall Diameter: Approx. 5.5 mm
- Cable Certification: Tested for Continuity, 360° Shield Termination
- Packaging: Individually packaged
- Approvals: RoHS, UL Listed
Buy the Buy Universal Connectivity USB 3.0 Cable Part Number U3A00084-05M Online
Enhance your data connectivity with this high-quality USB 3.0 cable featuring a black LSZH jacket and 0.5 meters length. It supports fast data transfer rates with gold-plated contacts ensuring minimal signal loss. The cable is shielded with foil and braid for superior EMI protection, making it ideal for industrial, commercial, and professional environments. Individually packaged for convenience, it's compliant with RoHS and UL standards, providing durability and safety for critical data and device connections in various setups.
Buy Universal Connectivity USB 3.0 cable U3A00084-05M now and experience reliable high-speed data transfer and excellent shielding for industrial applications.
Frequently Asked Questions
Where can I buy L-COM U3A0008405M?
You can click on the BUY or RFQ button to purchase U3A0008405M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U3A0008405M?
You can download the U3A0008405M datasheet or visit the L-COM website for support.
Who is the manufacturer of U3A0008405M?
L-COM
