L-COM LCCA30155FT4 RF Cable Assembly

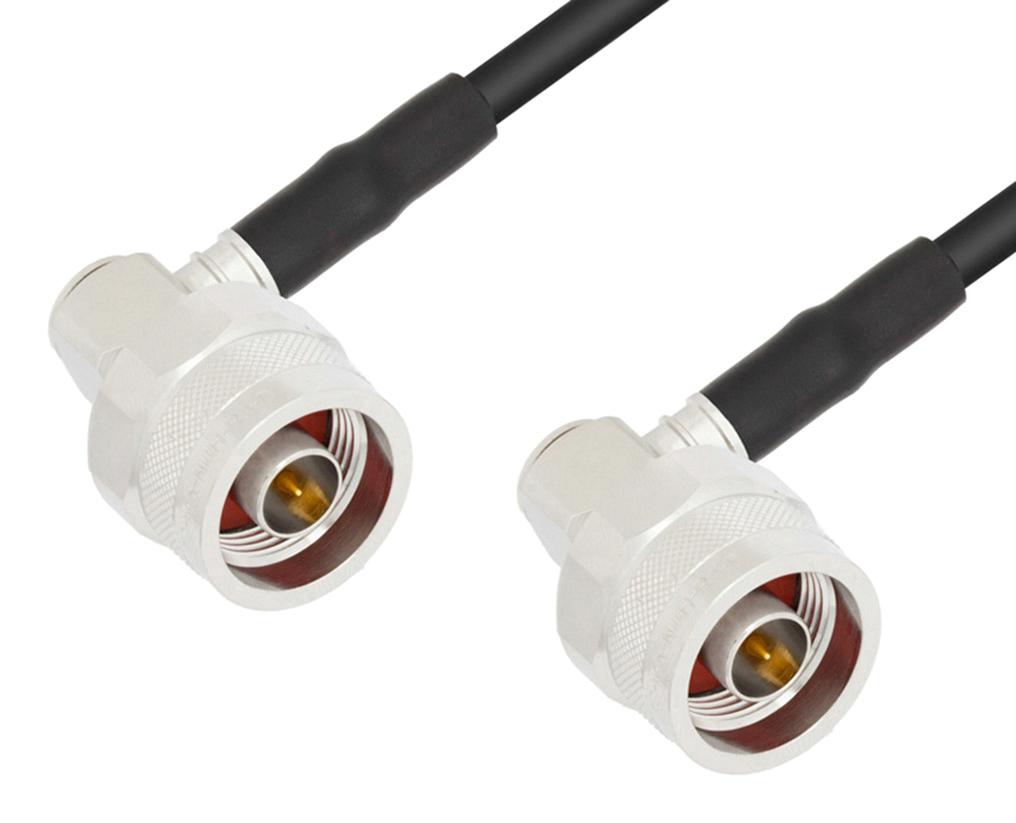

The Low Loss N Male Right Angle to N Male Right Angle Cable Assembly using LMR-195 coaxial cable offers reliable performance up to 5.8 GHz, ideal for cellular, Wi-Fi, land mobile radio, and antenna applications. It features a durable PE jacket, double shielding with aluminum tape and tinned copper braid for shielding effectiveness greater than 90 dB, and a flexible design suitable for tight spaces. The assembly is 4 feet long with a rugged right angle N connectors, ensuring easy installation and minimal signal loss, making it perfect for communication systems requiring high precision and low attenuation.
L-COM LCCA30155FT4 RF Cable Assembly Specifications:
- Frequency Range: 0 to 5.8 GHz
- Impedance: 50 Ohms
- VSWR: 1.4:1
- Velocity of Propagation: 80%
- RF Shielding: > 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 μH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000 ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000 ft
- Cable Length: 4 ft
- Cable Diameter: 0.8 in
- Weight: 0.209 lbs
- Connector Type: N Male Right Angle
- Cable Type: LMR-195
- Jacket Material: PE (F)
- Max Temperature: -40°C to +85°C
- Minimum Bend Radius: 2 in
- Mating Cycles: 500
Buy the INFINITG LCCA30155 – Reliable RF Cable for Industrial Applications
Order the INFINITG LCCA30155 cable assembly online today. This 4-foot low loss coaxial cable with right angle N connectors ensures high-frequency performance up to 5.8 GHz. Built with durable PE jacket and double shielding for superior signal integrity, it’s perfect for cellular, Wi-Fi, and antenna installations. Designed for flexibility and longevity, this assembly simplifies tight space installations while maintaining excellent RF shielding and low insertion loss. Get high-quality RF connectivity with same-day shipping options available.
Buy INFINITG LCCA30155 now and experience unmatched reliability and performance in your communication systems with low loss and durable construction.
