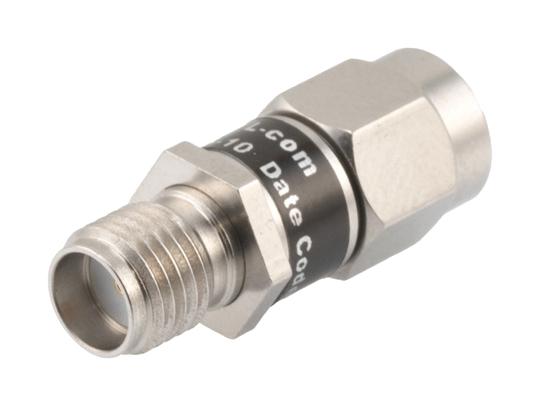

L-COM LCAT100510 RF Fixed Attenuator
The INFINITG brand 2W/10 dB Fixed Attenuator features SMA male to SMA female connectors with a stainless steel body, designed for high-frequency applications up to 18 GHz. It offers a fixed attenuation of 10 dB with an attenuation accuracy of ±0.8 dB, VSWR less than 1.30:1, and a maximum input power of 2 Watts. The compact design measures approximately 0.98 inches in length and 0.312 inches in diameter, suitable for instrumentation, prototyping, precision measurements, and production systems requiring reliable and precise signal attenuation.
L-COM LCAT100510 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 10 dB
- Attenuation Accuracy: ±0.8 dB
- VSWR: <1.30:1
- Maximum Input Power: 2 Watts CW, 500 Watts peak (derated linearly to 0.5W at 125°C)
- Connector Type: SMA Male to SMA Female
- Connector Material: Brass, Gold Plated (contacts); Stainless Steel (coupling nut and body)
- Size: Length 0.98 in (24.89 mm), Diameter 0.312 in (7.92 mm)
- Body Material: Stainless Steel
- Operating Temperature Range: -55°C to +125°C
Buy the INFINITG Series RF Attenuator: 2W 10 dB SMA Male to SMA Female Up to 18 GHz
Purchase the INFINITG 2W/10 dB Fixed Attenuator online today and enhance your RF measurement accuracy. Featuring SMA connectors with stainless steel bodies, it offers a 10 dB fixed attenuation, operates up to 18 GHz, and supports a maximum input power of 2 Watts. Its compact size (0.98 inches length) makes it ideal for instrumentation, prototyping, and production systems that require precise signal reduction. Count on this reliable, RoHS-compliant attenuator for consistent, high-quality RF performance in demanding environments.
Buy INFINITG 2W/10 dB SMA fixed attenuator now and experience unmatched reliability and performance in RF signal attenuation.
Frequently Asked Questions
Where can I buy L-COM LCAT100510?
You can click on the BUY or RFQ button to purchase LCAT100510 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100510?
You can download the LCAT100510 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100510?
L-COM
