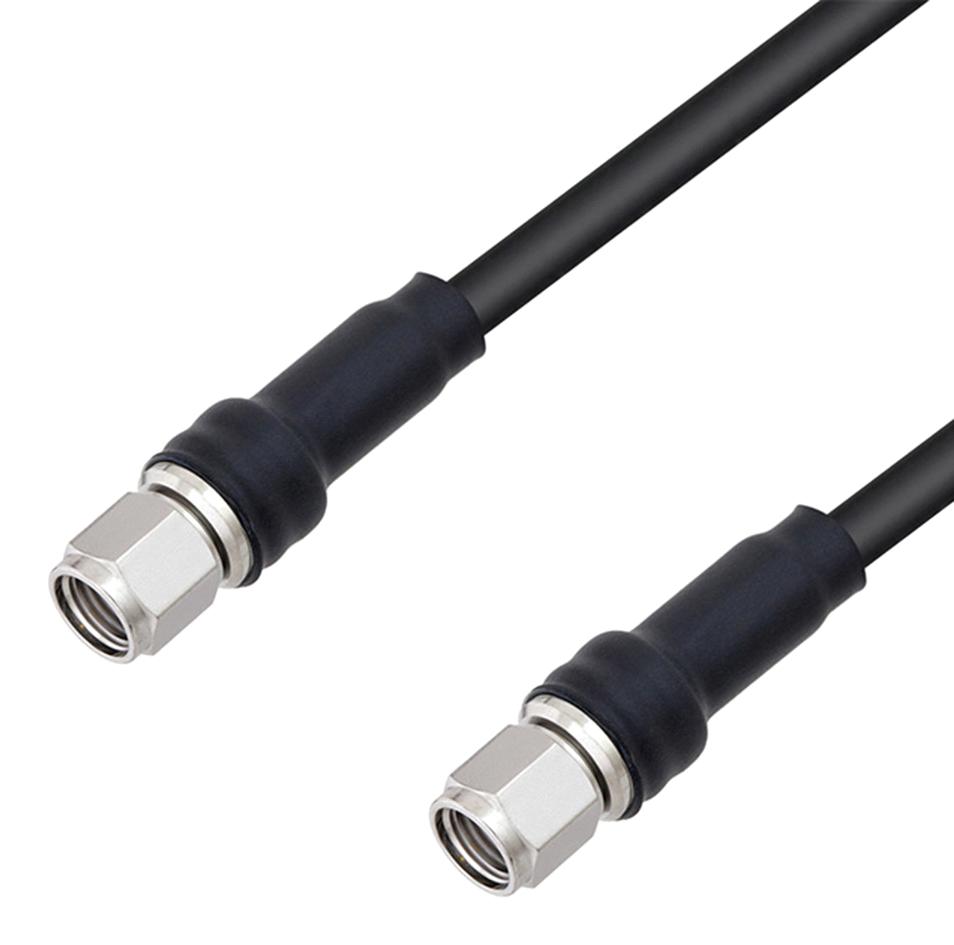

L-COM LCCA30156FT10 SMA Cable Assembly
L-com’s LCCA30156-FT 10 is a low loss SMA male to SMA male cable assembly with Times Microwave connectors using LMR-195 coax, 10 feet long, ideal for high-frequency applications up to 5.8 GHz. It features a PE jacket, double shielding with aluminum tape and tinned copper braid, and offers shielding effectiveness greater than 90dB. Designed for flexibility, it has a minimum bend radius of 2 inches, low insertion loss, and is suitable for land mobile radio, cellular, Wi-Fi, antenna installations, and laboratory uses. Manufactured with high-quality materials for durability and consistent electrical performance.
L-COM LCCA30156FT10 SMA Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Velocity of Propagation: 80 %
- RF Shielding: 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 inches
- Cable Length: 10 feet
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Connector Type: SMA Male to SMA Male
- Connector Body Material: Stainless Steel
- Connector Plating: Gold over Brass
- Operating Temperature: -40°C to +85°C
- Bend Radius: 2 inches
- Weight: 0.15 lbs
- Diameter: 0.312 inches
Buy the Buy INFINITG SMA Male to SMA Male Cable Part Number LCCA30156-FT10 Online
Purchase the INFINITG SMA Male to SMA Male Cable Assembly with LMR-195 coax, 10 feet long, for high-performance RF connections. This durable, flexible cable features excellent shielding greater than 90dB, low insertion loss, and operates up to 5.8 GHz. Ideal for antenna installations, radio, Wi-Fi, cellular systems, and laboratory use, it provides optimal signal integrity, withstands tough conditions, and ships same day for quick deployment. Upgrade your communication setup with this high-quality RF cable assembly from INFINITG today.
Order your INFINITG Series LCCA30156-FT10 SMA Male to SMA Male Cable today and enhance your communication systems with reliable, high-quality coaxial cable assemblies.
Frequently Asked Questions
Where can I buy L-COM LCCA30156FT10?
You can click on the BUY or RFQ button to purchase LCCA30156FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30156FT10?
You can download the LCCA30156FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30156FT10?
L-COM
