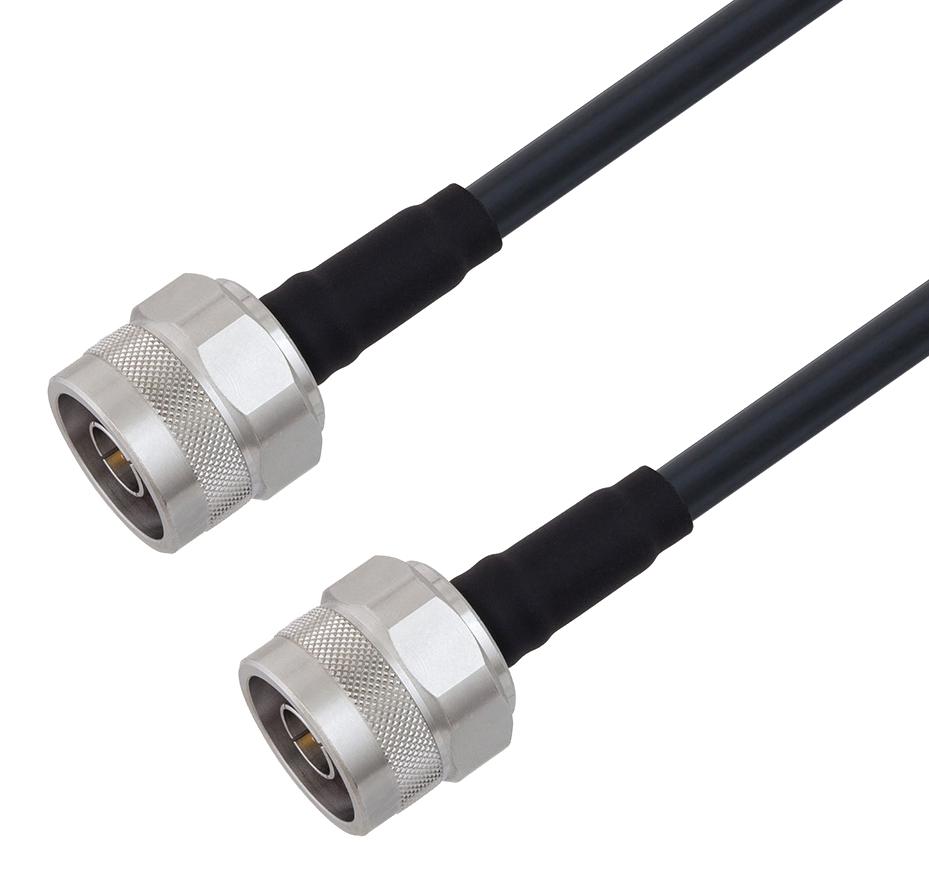

L-COM LCCA30173FT2 RF Coaxial Cable Assembly
L-com’s LCCA30173-FT2 is a 2-foot low loss N male to N male coaxial cable assembly featuring LMR-240 cable and Times Microwave components. It operates up to 5.8 GHz with very low insertion loss, thanks to PE dielectric and a double shielding layer of tinned copper braid over aluminum tape, providing shielding effectiveness greater than 90 dB. Ideal for RF applications in land mobile radio, cellular, Wi-Fi, antenna installations, and laboratory use, this flexible, durable assembly features brass gold-plated connectors, a black PE jacket, and withstands operating temperatures from -40°C to +85°C.
L-COM LCCA30173FT2 RF Coaxial Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Impedance: 50 Ohms
- Insertion Loss: 0.28 dB at 0.25 GHz, 0.46 dB at 1 GHz, 0.61 dB at 5.8 GHz
- Velocity of Propagation: 84%
- Connector Type: N Male, N Male
- Connector Material: Brass, Gold-plated
- Dielectric: PE (F)
- Shielding Layer 1: Aluminum Tape
- Shielding Layer 2: Tinned Copper Braid
- Cable Length: 2 Ft (609.6 mm)
- Cable Diameter: 0.89 in (22.61 mm)
- Cable Type: LMR-240
- Inner Conductor: Solid Copper
- Operating Temperature Range: -40°C to +85°C
- Bend Radius: 2.5 Inches
- Jacket Material: PE, Black
- Jacket Diameter: 0.24 in (6.1 mm)
- Maximum Repeated Bend Radius: 2.5 in (63.5 mm)
Buy the Buy INFINITG Low Loss N Male to N Male Cable Part Number LCCA30173-FT2 Online
Order the INFINITG LCCA30173-FT2 2-foot low loss N male to N male coaxial cable assembly today. Designed with LMR-240 coax and Times Microwave components, it offers exceptional performance up to 5.8 GHz. This flexible RF cable features a double shielding for excellent interference rejection exceeding 90 dB, making it perfect for RF signal connections in wireless, cellular, and antenna systems. Its durable PE jacket and reliable brass connectors ensure long-lasting operation across a wide temperature range, with same-day shipment available for immediate deployment and testing.
Get INFINITG LCCA30173-FT2 today—built for high-performance RF connections and durable operation in tough environments.
