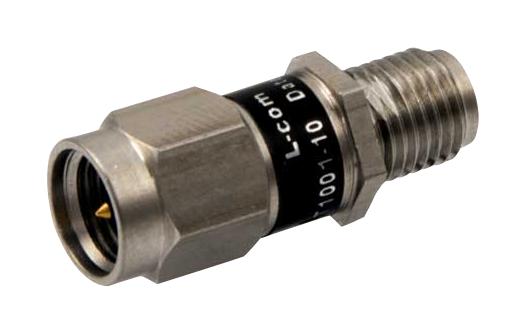

L-COM LCAT100110 RF Attenuator
The L-com LCAT1001-10 is a 2 Watt/10 dB RF fixed attenuator with SMA male to SMA female connectors, featuring a stainless steel body. It operates from DC to 3 GHz, providing precise signal attenuation for instrumentation, RF test systems, and prototyping applications. The device offers an attenuation accuracy of ±0.5 dB, VSWR below 1.15:1, and a maximum input power of 2 Watts. Compact and robust, it is ideal for impedance matching and protecting sensitive equipment in high-frequency testing environments, ensuring reliable performance over a broad temperature range.
L-COM LCAT100110 RF Attenuator Specifications:
- Frequency Range: DC to 3 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 10 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: < 1.15:1
- Maximum Input Power (CW): 2 Watts
- Input Power (Peak): 500 Watts with 0.4% duty cycle
- Size: Length 0.8582 inches (21.8 mm), Width 0.312 inches (7.92 mm)
- Weight: 0.0088 lbs (3.99 g)
- Body Material: Stainless Steel
- Connector Type: SMA Male to SMA Female
- Contact Material: Brass, Gold plated (female) Beryllium Copper, Gold (female)
- Environmental Operating Range: -55°C to +125°C
Buy the INFINITG Series RF Attenuator: LCAT1001-10
Order the INFINITG RF Attenuator LCAT1001-10 online today and enjoy fast shipping, competitive pricing, and trusted quality. Perfect for reducing signal levels in RF test systems, instrumentation, and prototyping, this 2 Watt/10 dB device features SMA connectors, stainless steel construction, and broadband operation from DC to 3 GHz. Its compact size and robust design ensure accurate impedance matching, signal protection, and reliable performance across temperature ranges from -55°C to +125°C. Ideal for engineers and technicians needing precise RF attenuation in demanding environments.
Buy INFINITG LCAT1001-10 now and experience unmatched reliability and performance in RF signal attenuation for your professional applications.
Frequently Asked Questions
Where can I buy L-COM LCAT100110?
You can click on the BUY or RFQ button to purchase LCAT100110 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100110?
You can download the LCAT100110 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100110?
L-COM
