L-COM LCCA30192FT10 RF Coaxial Cable Assembly
L-com's LCCA30192-FT10 is a 10-foot low-loss N male right angle to N male coaxial cable assembly designed with LMR-400 coax for reliable RF signal transmission up to 6 GHz. It features dual shielding with aluminum tape and tinned copper braid, providing shielding effectiveness greater than 90 dB. The flexible assembly includes a PE dielectric with 85% phase velocity, ideal for tight spaces and engineering applications like mobile radio, Wi-Fi, and antenna setups. The assembly's robust design supports high-frequency operations with minimal insertion loss and excellent environmental resilience.
L-COM LCCA30192FT10 RF Coaxial Cable Assembly Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Conductor Material: Copper Clad Aluminum, plated with Gold
- Dielectric: PE (F)
- Shielding: Aluminum tape and Tinned Copper Braid, shielding effectiveness > 90 dB
- Insertion Loss: 0.58 dB at 0.5 GHz, 0.71 dB at 1 GHz, 0.98 dB at 2.5 GHz, 1.4 dB at 6 GHz
- Velocity of Propagation: 85%
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000 ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.405 in
- Cable Diameter: 0.8 in
- Length: 120 in
- Bend Radius: 4 in (minimum)
- Connectors: N Male right angle and N Male threaded, brass with gold plating
- Mating Cycles: 500
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
- Environmental Resistance: Weatherproof
- Certifications: RoHS Compliant

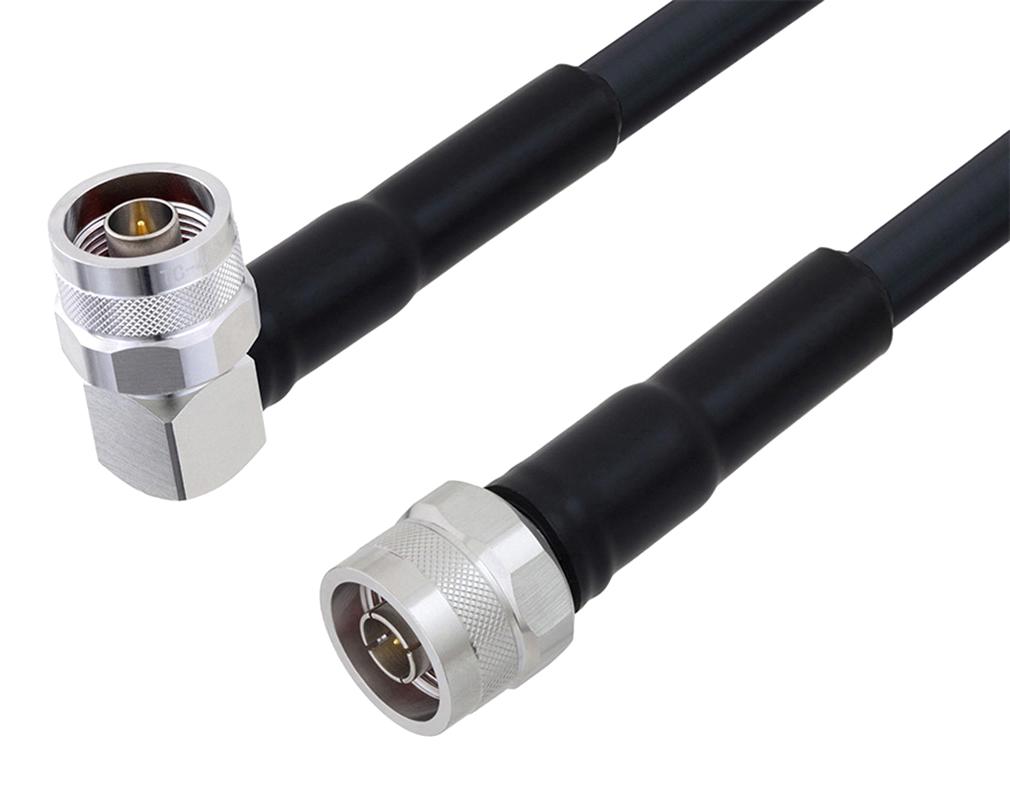

Buy the Buy INFINIT@ Low Loss N Male Right Angle to N Male Cable Assembly Part Number LCCA30192-FT10 Online
Purchase the INFINIT@ LCCA30192-FT10 low-loss N male right angle to N male coaxial cable assembly online today. This 10-foot flexible cable features LMR-400 coax, excellent shielding over 90 dB, and operates reliably up to 6 GHz. Perfect for antenna installations, radio, Wi-Fi, and communication systems, it ensures minimal signal loss and high performance in demanding environments. Same-day shipping and custom options available to meet your specific project needs. Elevate your RF connectivity now!
Order your INFINIT@ LCCA30192-FT10 N Male Right Angle to N Male Cable Assembly today and equip your RF systems with reliable, low-loss connectivity in tight spaces.
Frequently Asked Questions
Where can I buy L-COM LCCA30192FT10?
You can click on the BUY or RFQ button to purchase LCCA30192FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30192FT10?
You can download the LCCA30192FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30192FT10?
L-COM
