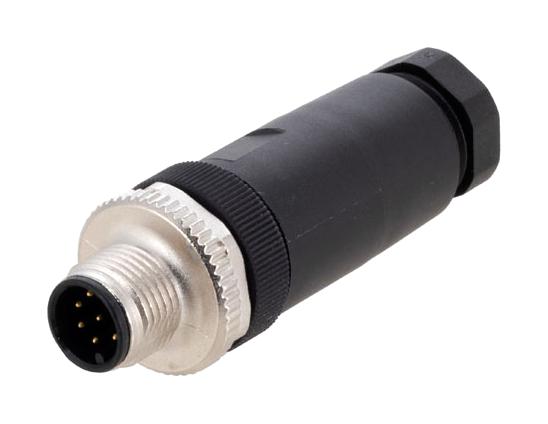

L-COM M12FT8AM Industrial M12 Connector
This M12 8-pin male connector is designed for industrial automation and sensor connections, featuring IP67 protection for rugged environments. It supports a voltage of up to 30 V AC/DC and a maximum current of 2 A per contact, ensuring reliable performance in harsh conditions. The connector's construction incorporates chemical and oil-resistant plastic, with a temperature rating from -40°C to +85°C. Suitable for cable diameters of 6mm to 8mm, it uses screw terminal connections and is ideal for machinery, automation, and control systems requiring secure, waterproof connections.
L-COM M12FT8AM Industrial M12 Connector Specifications:
- Cable Outside Diameter: 6mm - 8mm (.24" - .31")
- Conductor Range: 0.25-0.5mm (24-20AWG)
- Operating Voltage: 30 V AC/DC Max
- Operating Current: 2 A Max per contact
- Temperature Range: -40°C to +85°C
- Protection: IP67 when mated and tightened
- Material: Plastic with chemical and oil resistance
- Cable Connection: Screw terminal
- Mechanical Data: Outer diameter of cable 6-8mm, suitable for rugged industrial environments
- Application: Suitable for sensors, automation, machinery, industrial control systems
Buy the Industrial Components 8-Connector M12 – Reliable Sensor Connections for Industrial Applications
Enhance your industrial automation systems with this reliable M12 8-pin male connector. Constructed from durable, chemical-resistant plastic and rated IP67 for waterproof performance. Its wide temperature range from -40°C to +85°C ensures suitability for diverse environments. Supports up to 30 V AC/DC and 2 A per contact, providing robust electrical connection for sensors and machinery. The screw terminal connection facilitates easy installation, making it an ideal choice for industrial control, automation, and machinery wiring. Secure your connections today online!
Order your Industrial Components Series M12FT8AM connector today and ensure your automation and control systems operate reliably in harsh environments.
